S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
afterwards.
Applies only to R-line
-
Apply masking tape on the outside of the exhaust pipe clip to avoid damage from the base of the saw.
Leave the masking tape in place during installation.
-
Cut along the marked raised area and remove the cut-out area.
Applies to all models
-
After cutting, smooth off the edges using a file.
Installing the towing member

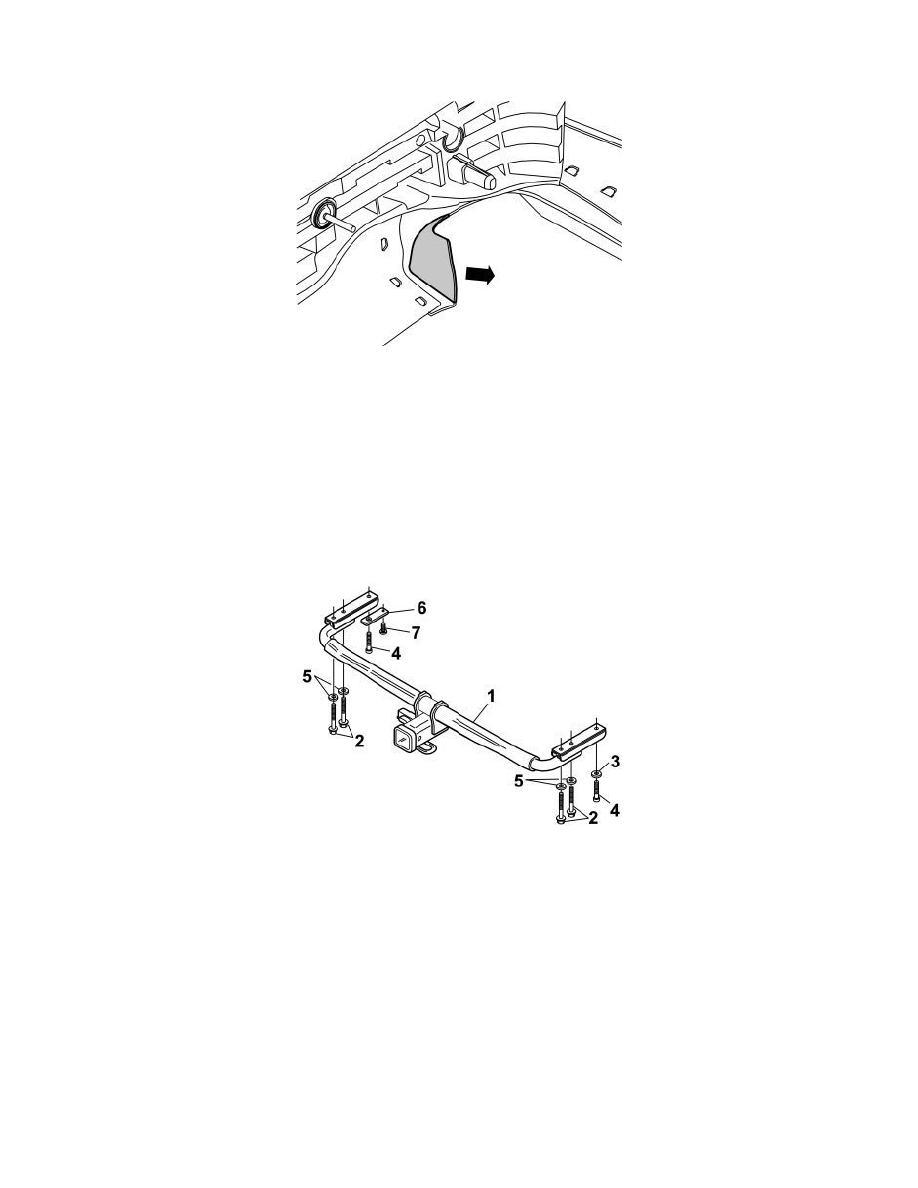

Illustration A
-
Clean any underseal and dirt from the mating surfaces between the towbar end face and the bodywork.
-
Install the screws (2 and 4) from the underneath with the washers (3 and 5) between. Finger tighten.
-
Install a washer plate (6) on the left-hand side on the front screw (4). This is to secure the rear mounting for the heat deflector plate using the screw
(7). (See illustration B)
Illustration B
