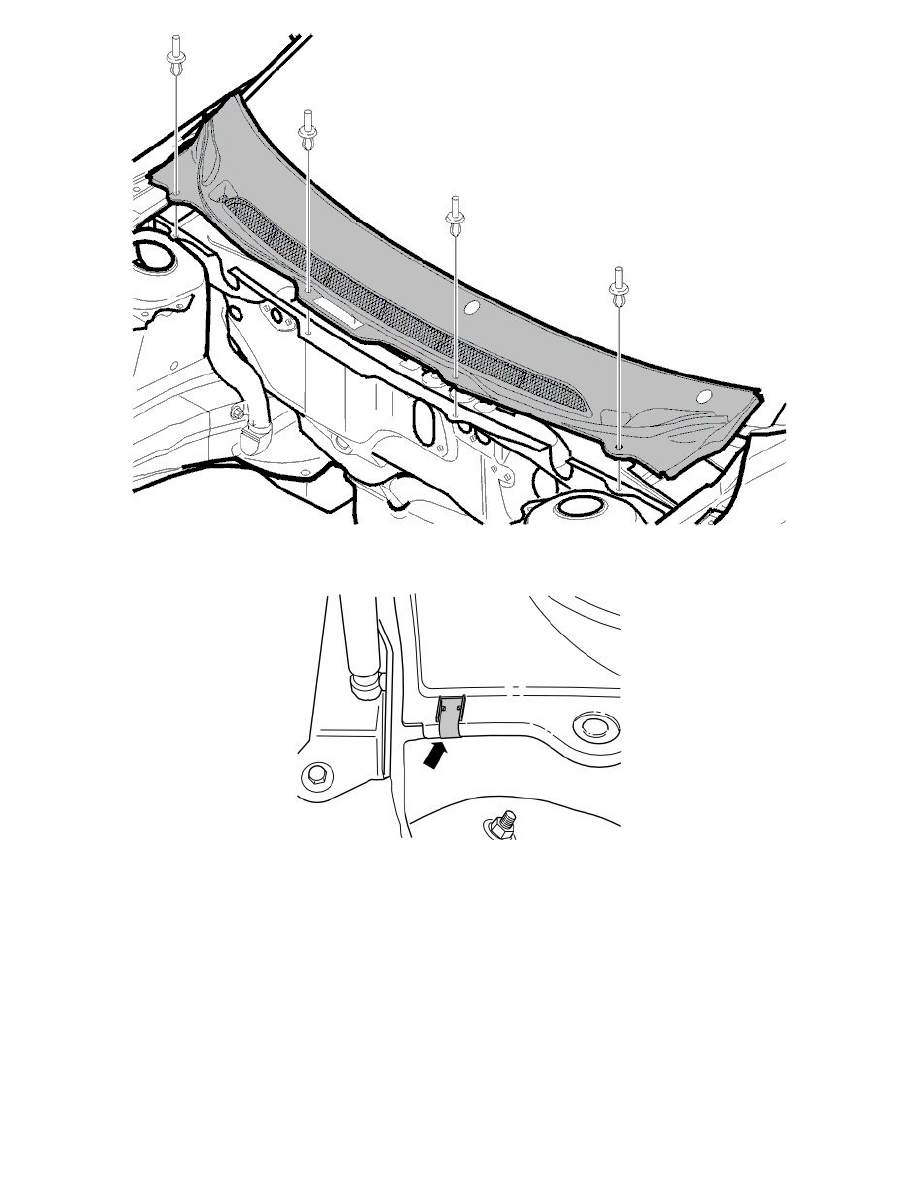

The cowl is secured by four plastic rivets.
Press in the center of the rivet head. Remove the clips.

Remove both the outer clips.
Lift out the cowl.
Detach the drainage hoses.

Install in the reverse order.

Gutter

The gutter will be loose while the cover is off.
Remove the gutter.

Install in the reverse order.
