S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)

Page 12
background image

-

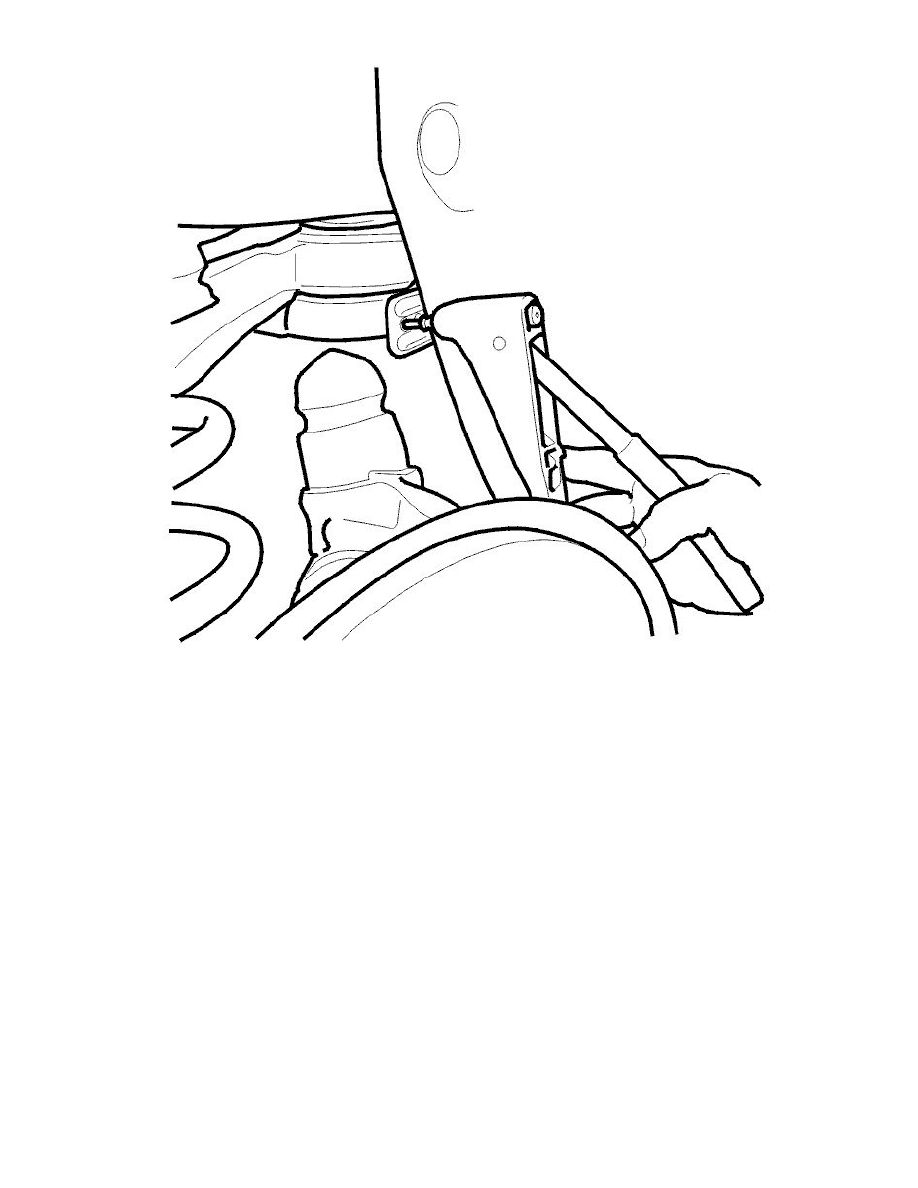

Pop rivet the heat deflector for the exhaust pipe into the left rear mounting on the sub-frame

-

Install the fender liner. Tighten the fender liner with the plastic nut.
