S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)

Page 14
background image

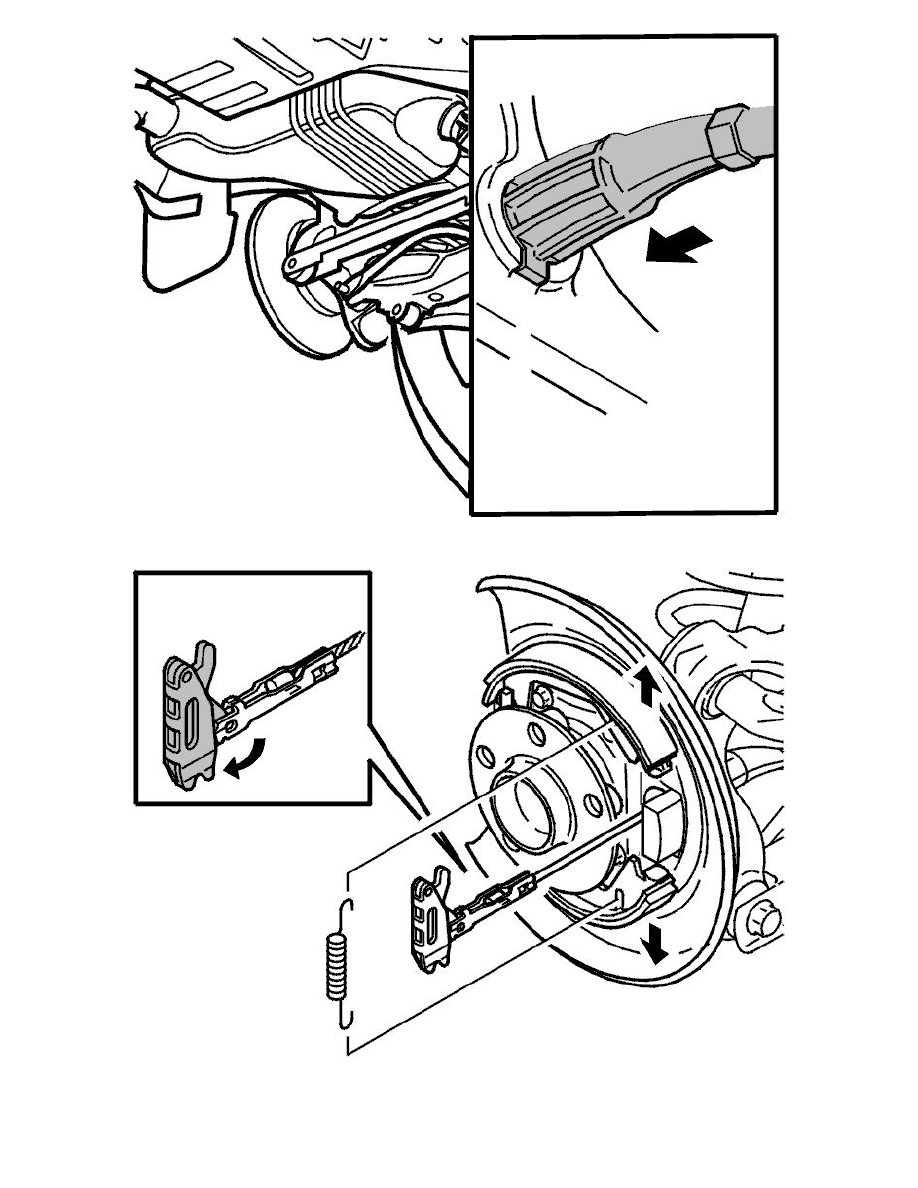

Press the cable sleeve guide sleeve into place in the mounting.

Install

-

the expander on the mounting for the mechanical cable

-

the expander between the brake shoes

-

the return spring.
