S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-

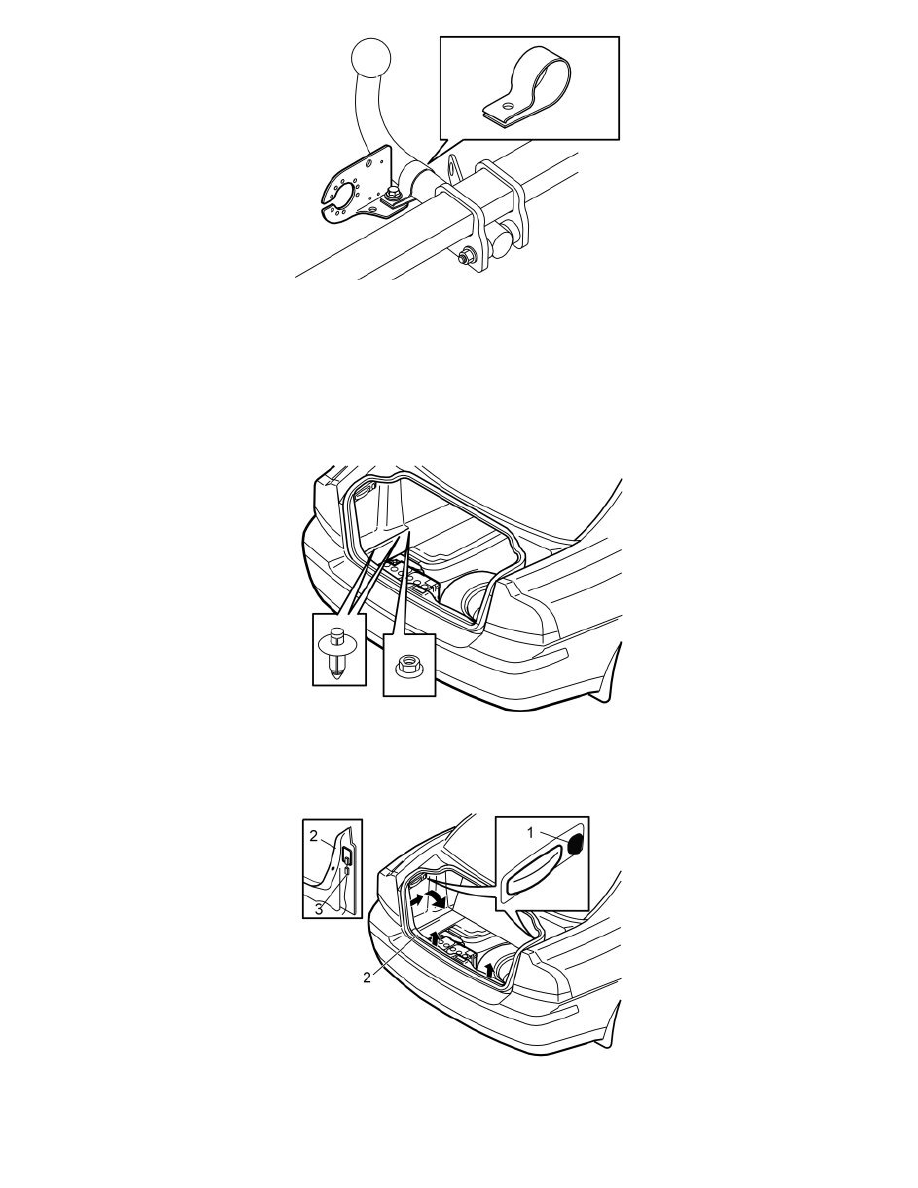

Take the bracket for the trailer connector, the pipe clamp, M8 screw and accompanying lock nut from the kit.
-
Install the bracket with the pipe clamp, the screw and the nut as illustrated. Tighten to 24 Nm (18 lbf.ft).
Note! The bracket must be located under the pipe clamp's level section.
-
Turn the ignition key to position 0. Remove the ignition key from the ignition switch.
NOTE! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.
-
Install the cable harness connector for the tow hitch, according to the Installation Instructions for the appropriate cable harness.
-
Fold up the floor hatch.
-
Press the clips in the centre until a "click" is heard. Remove the clips.
-
Remove the plastic nut.
-
Repeat the operation on the right-hand side.
-
Turn the handle (1) on the right and left-hand sides a quarter turn.
-
Fold the side panels inwards. Remove the panels.
-
Pull the tailgate sill trim panel (2) forwards on the right and left hand sides until the two clips on each side release. Carefully pull the panel with
some force as it is tightly secured.
