S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-

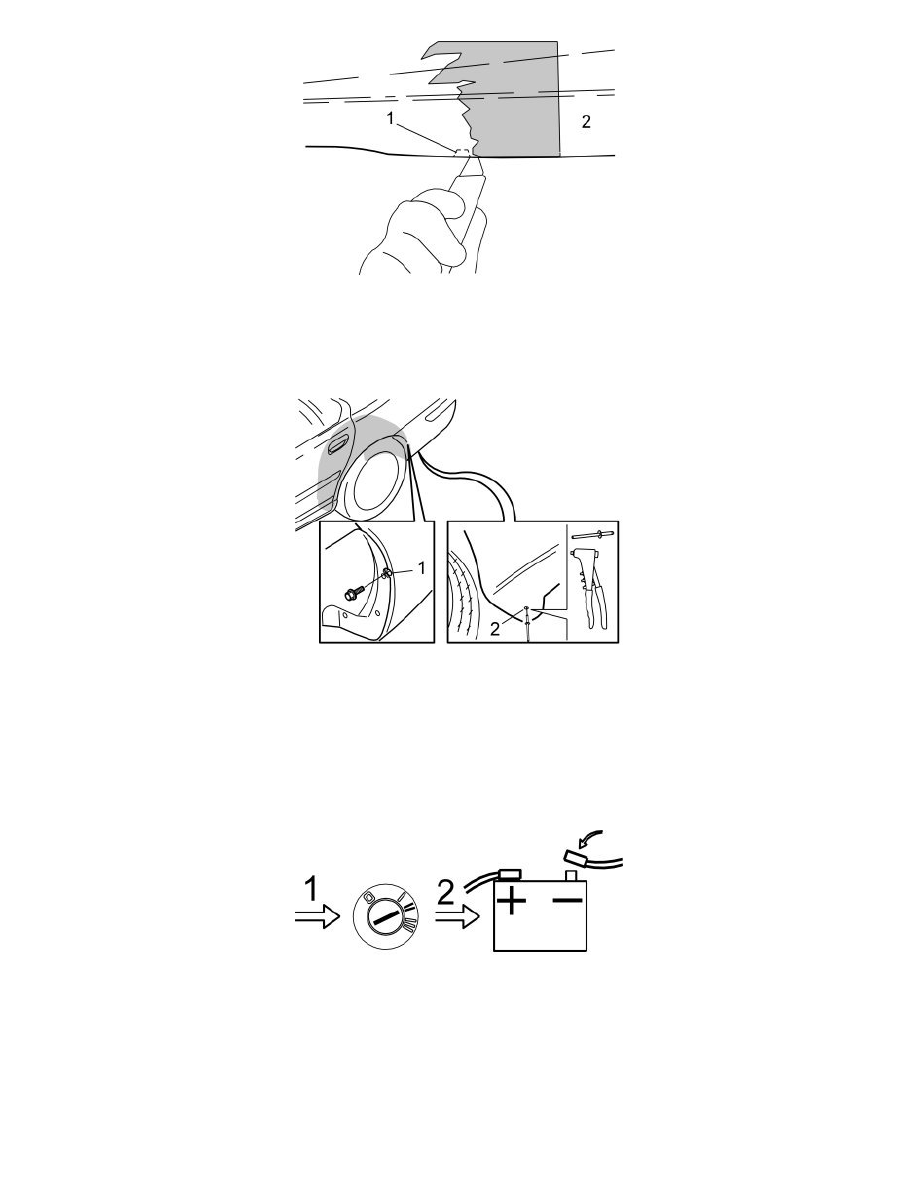

Cut a cut-out (1) in the location where the cable harness exits from the inside of the bumper on the left-hand side of the tow hitch, and enters the
rubber grommet in the floor.
-
Remove the protective paper (2) from the bumper.
Finishing work
-
Tighten the screw (1) on both sides.
-
Rivet (2) the bumper on the underneath on both sides as illustrated
-
Reinstall the nuts. Tighten the nuts to 18 Nm (14 lbf. ft.).
-
Install the rubber seals to cover the four nut holes
Reinstall:
-
the antenna connector
-
the mudguards, if applicable
-
the rear wheels. Lower the car.
-
Applies to cars with parking assistance: Connect the detached cable to the parking assistance module (PAM). Reinstall the control module.
-
Turn the ignition key to position II.
