S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-
Detach the smaller connector from the control module.
Preparations, rear suspension
-
Raise the car.
-
Remove the rear wheels.

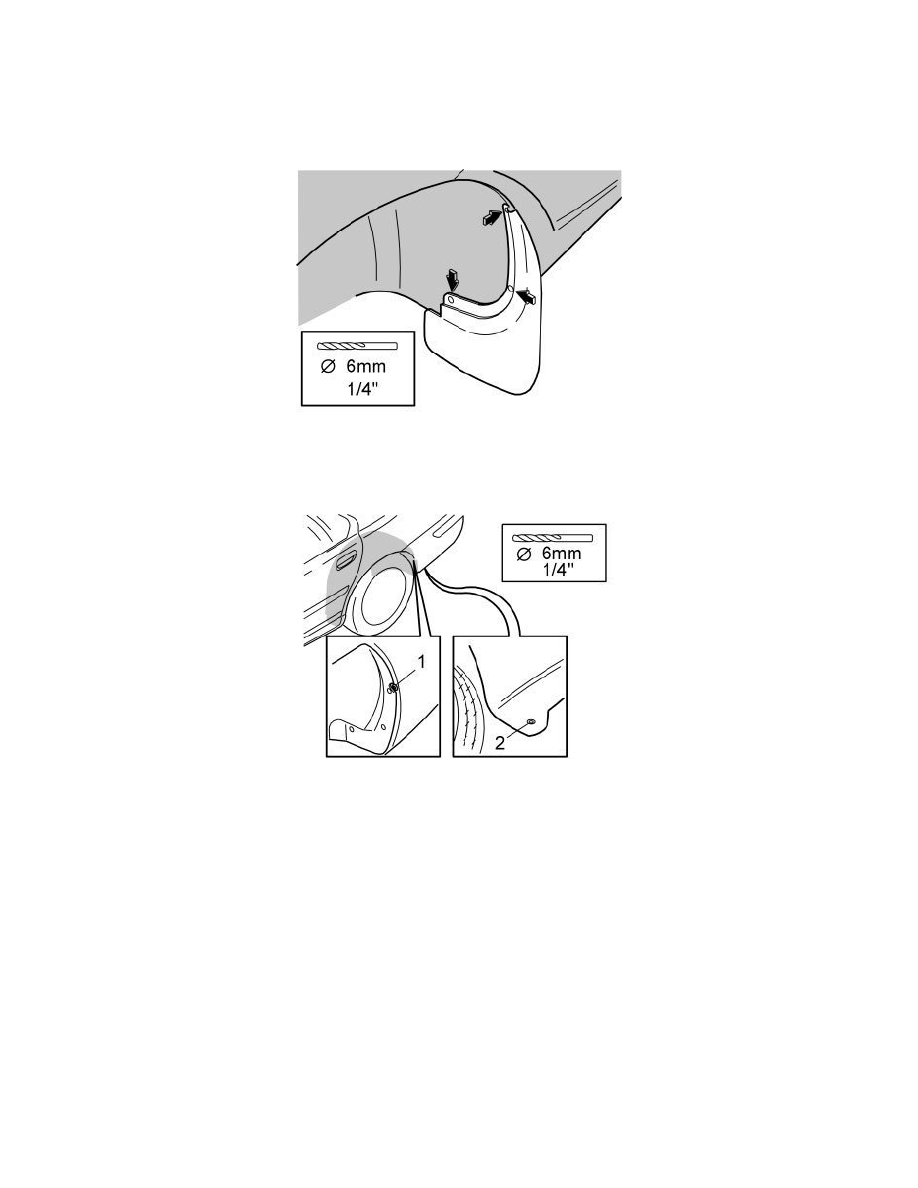

Illustration A only applies to cars with mudflaps
-
Carefully drill out the rivets that hold the mudflap in place on both sides. Use a dia. 6 mm (1/4 inches) diameter drill bit.
-
Remove the mudflaps.
Illustration B applies to all cars
-
Unscrew the screw (1) almost all the way on the left and right-hand sides in the rear edge of the wheel arch.
-
Press the screw using a screwdriver until the loose end pieces on the inside of the bumper cover are pressed backwards.
-
Carefully drill out the rivets (2) underneath the bumper on both sides. Use a dia. 6 mm (1/4 inches) diameter drill bit. Take care not to damage any
of the plastic components.
NOTE: There may be another installation procedure with more blind rivets on older cars.
Illustration A
