S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
Install the upholstery and cushion.

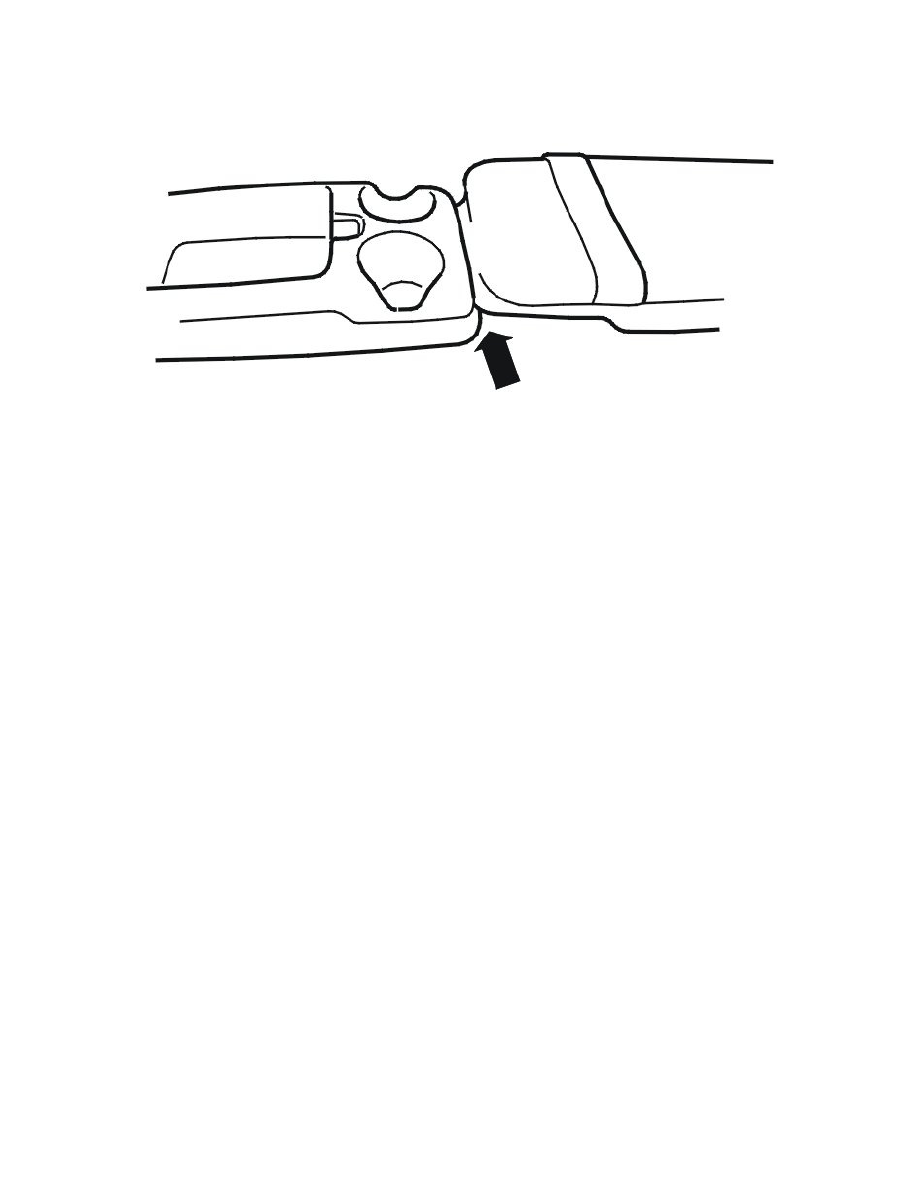

Start at the front edge. Press the Velcro strip into place. See the illustration.
Install:
-
the brackets on the left and right-hand sides. Use 1 x M5 screw per side. Tighten. See: Tightening torque See: Specifications
-
the cover and the shaft. Use 1 x M5 screw. Tighten. See: Tightening torque See: Specifications
-
the armrest. See: Center arm rest/integrated child seat See: Arm Rest/Service and Repair/Center Arm Rest/Integrated Child Seat.
