Page 9
background image

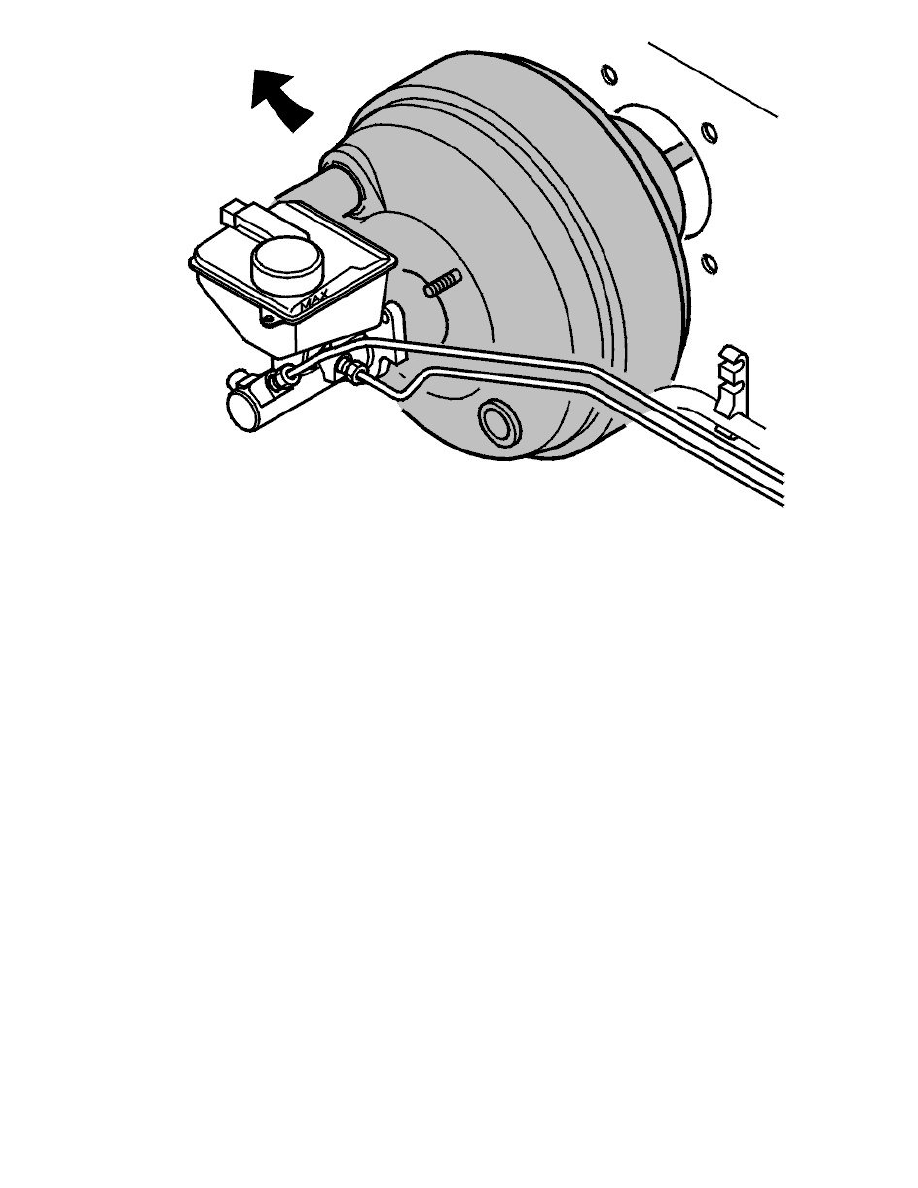

Carefully pull out the master cylinder.
Remove power brake booster.

Note! Keep the seal between the power brake booster and the firewall.

Installation

Transfer the terminals and seals to the new power brake booster
