S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
Muffler: Service and Repair
Muffler, Rear, Replace
Removing the rear muffler
-

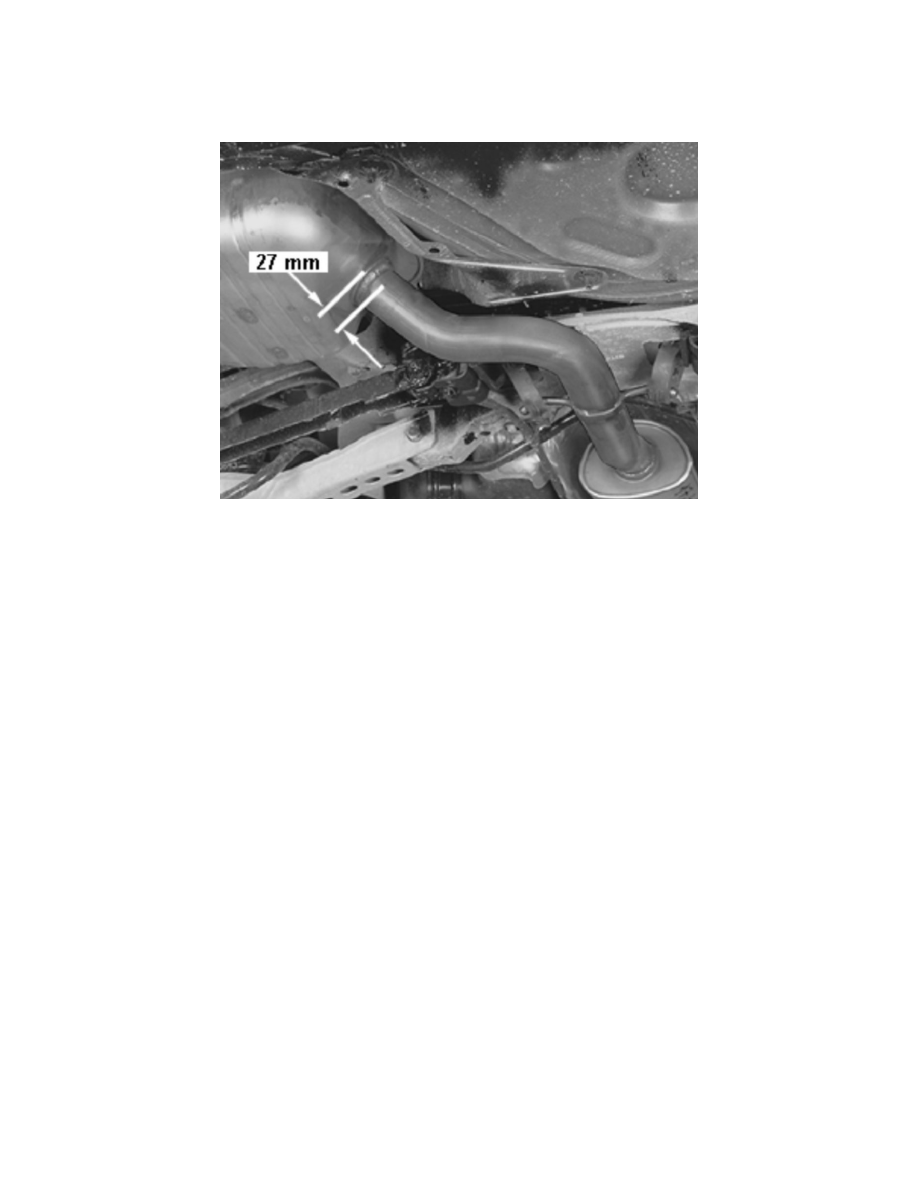

Measure 27 mm from the muffler and along the pipe. See the above figure.
-
Mark and cut the pipe. Use pipe cutter 115 8590.
-
Remove the muffler.
Installing the rear muffler
-
Polish the pipe with emery cloth.
-
Install a new muffler.
-
Tighten the clamp.
Check
Test run the engine. Check that the joint is properly sealed.
