S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
Service Port HVAC: Service and Repair
Needle Valve, Service Valve, Replacing
Service valve (at the member) and needle valve
Removal
-
Disconnect the battery negative lead.
-
Drain the refrigerant from the system.
-
Remove the pipe between the expansion valve and the junction point / side member. See Pipes / hoses, replacing.
Installation
Install. See Pipe receiver drier, replacing

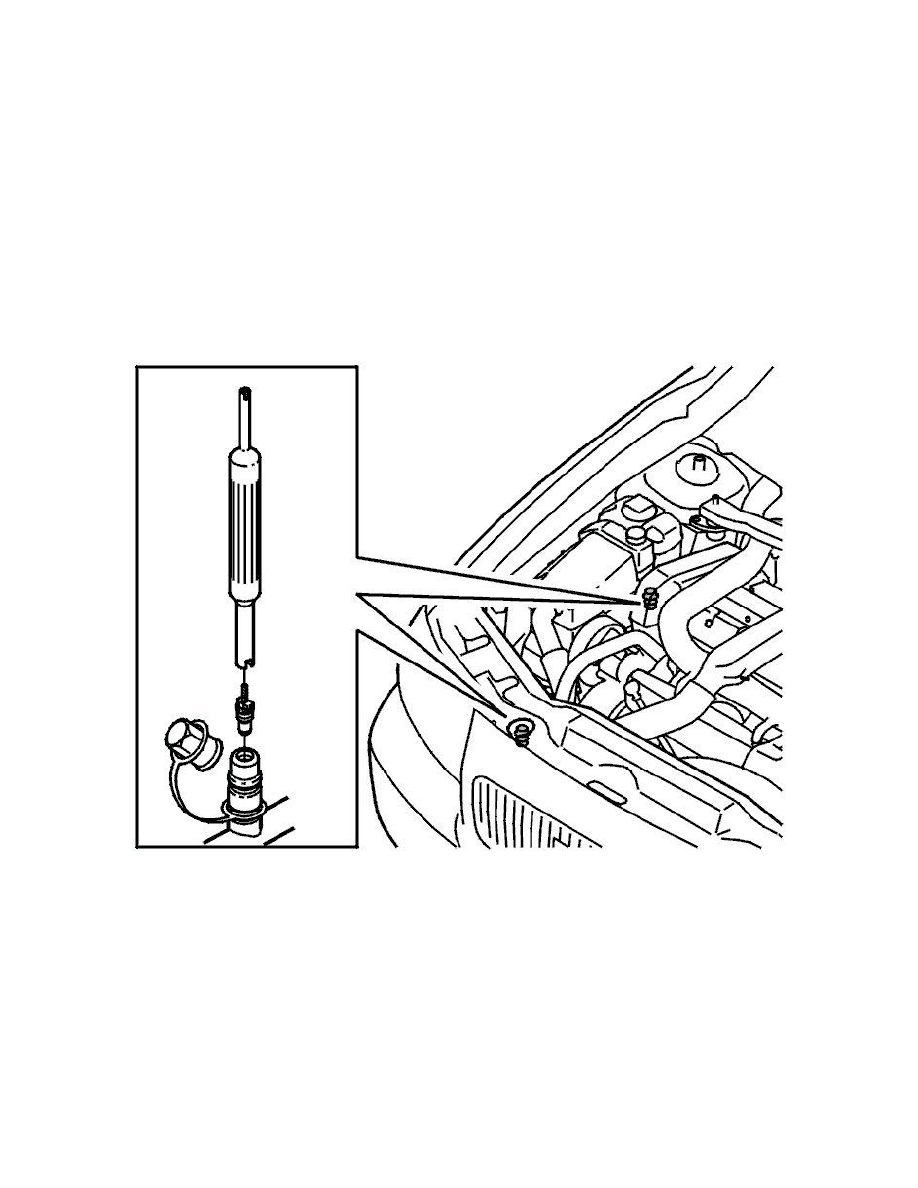

The needle valve in the service valve
Removal
-
Remove the valve cap
-
Unscrew the needle jet. Use special tool 951 1204.
Installation
Install in reverse order.
-
NOTE: Use only your thumb and index finger when tightening the service valve using the valve needle tool 981 1994. This is to prevent damage
to the seal for the valve.
-
Vacuum pump the system and leak test. See Refrigerant, draining
-
Fill the system with refrigerant and check for leaks. See Refrigerant, draining
-
Connect the battery negative lead.
Tighten the valve cap. Tighten to 6 Nm
