Page 3
background image

Caution! Do not damage the panel.

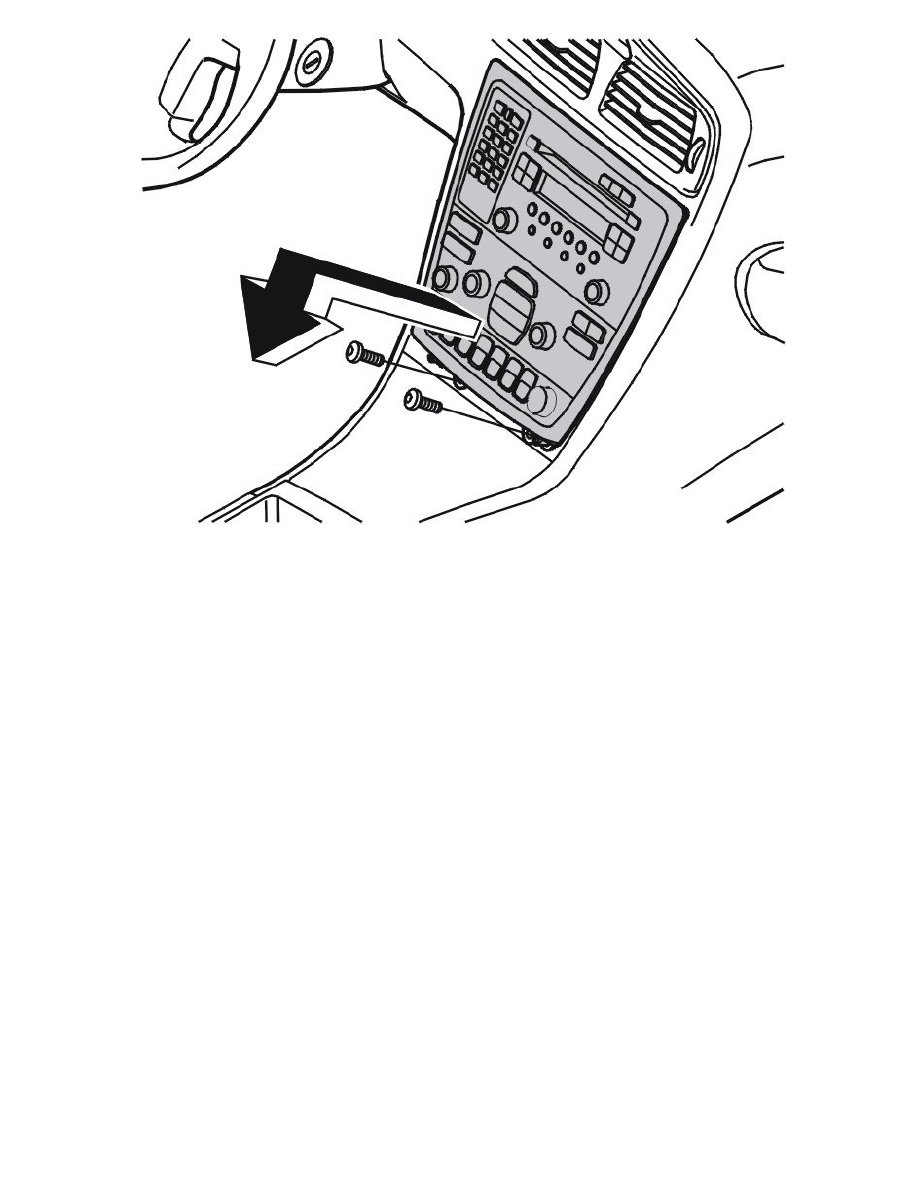

Remove:

-

the 2 screws

-

the dashboard environment panel by bending backward and downwards to the side

-

the connectors.

Removing the cigarette lighter assembly/electrical socket front
