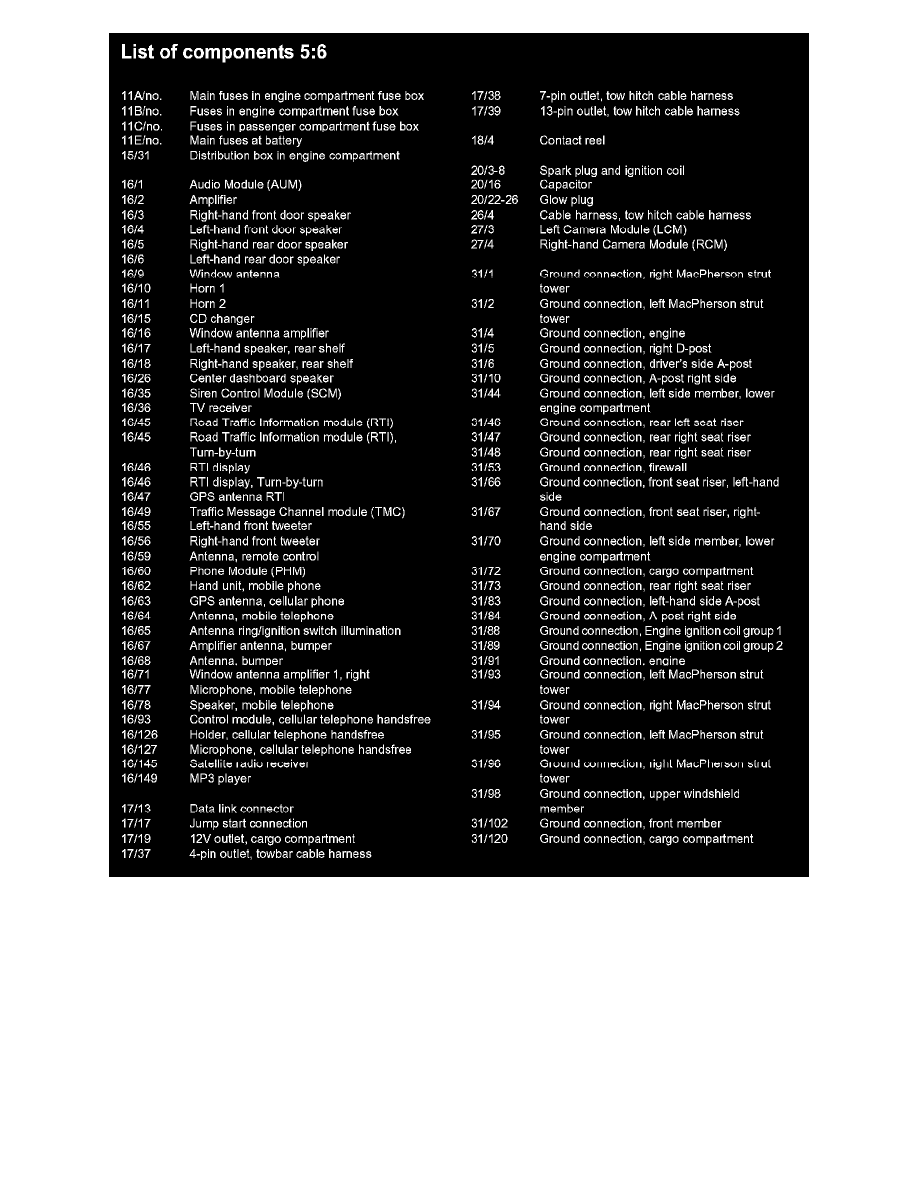

Trailer Lamps: Diagram Information and Instructions

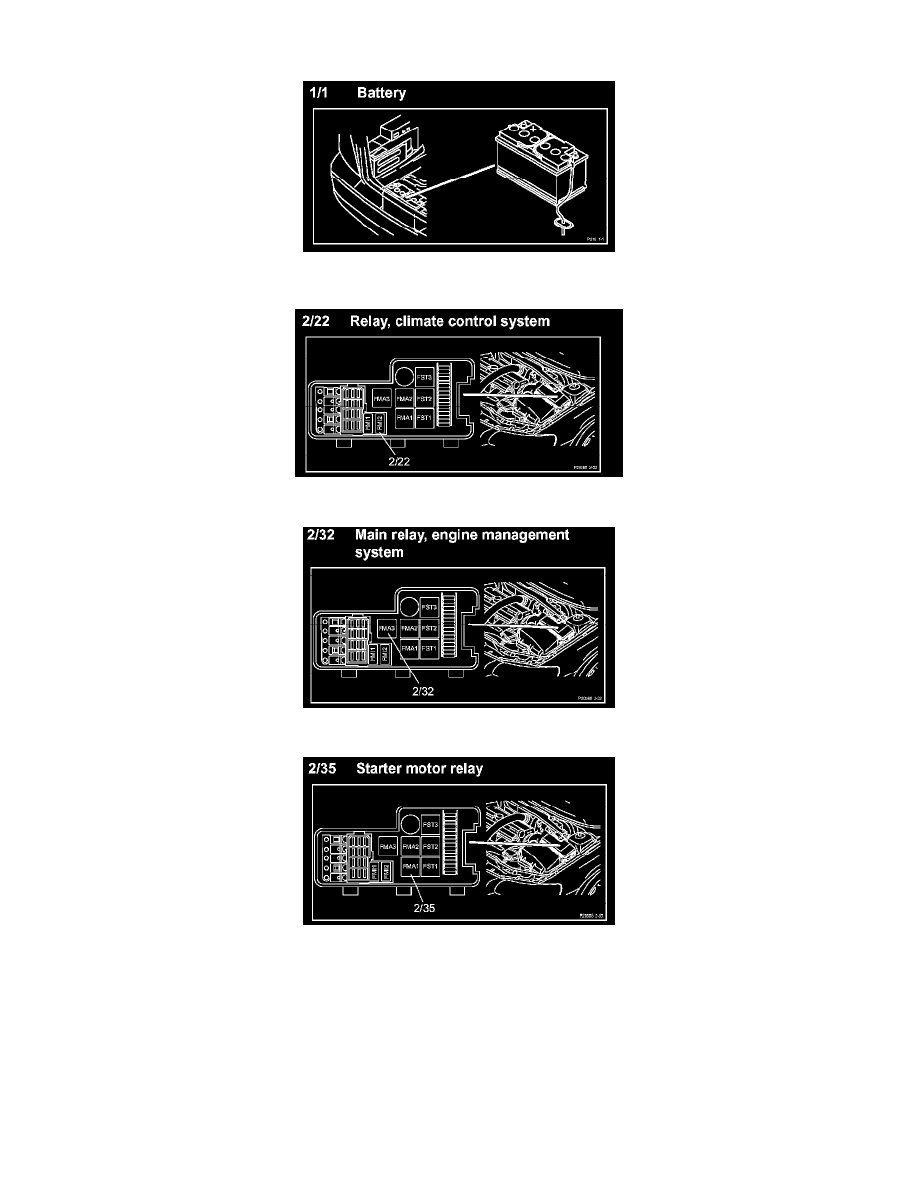

1/1 Battery

2/22 Relay, Climate Control System

2/32 Main Relay, Engine Management System

2/35 Starter Motor Relay
