S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)

Page 3
background image

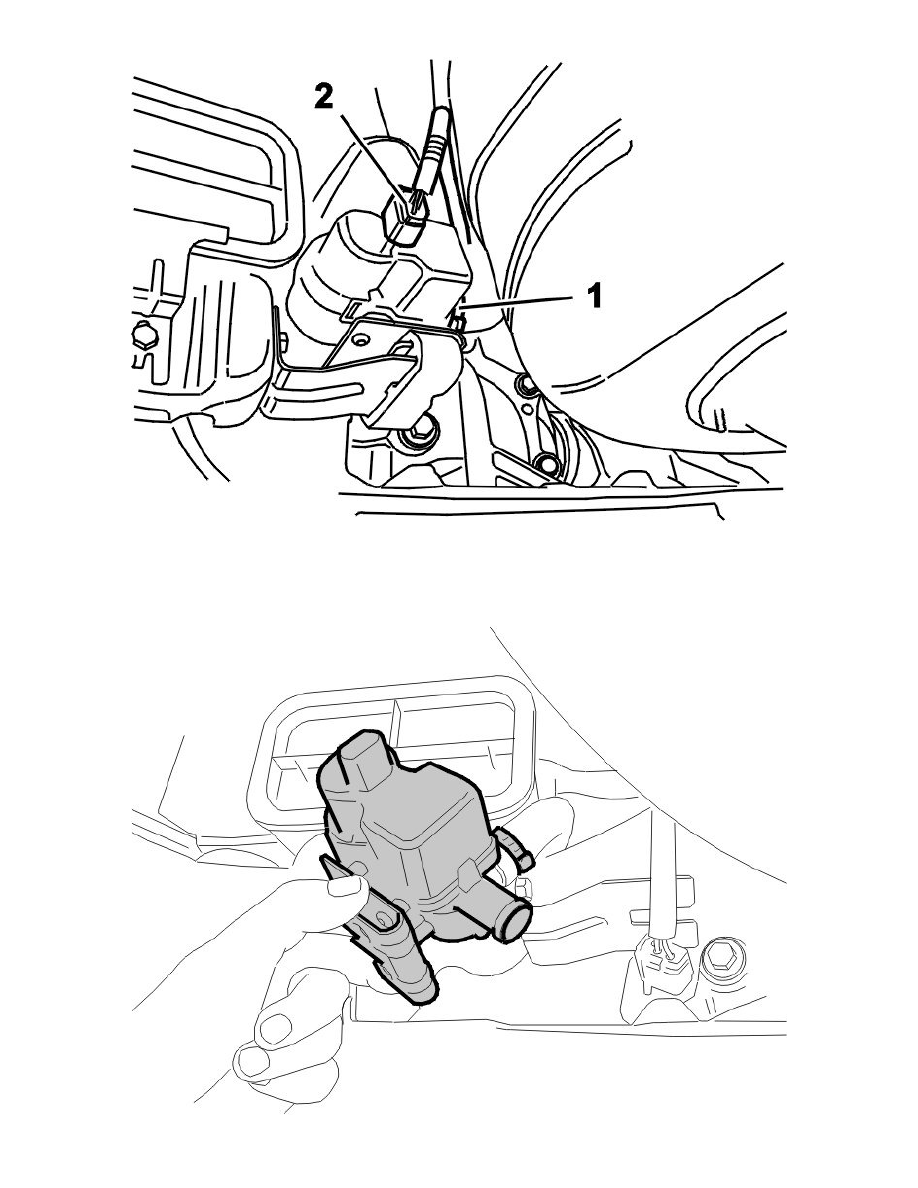

Remove:

-

the hose clamp (1)

-

the connector (2).

Pull the pump from the mounting.

Remove:
