S70 L5-2.4L VIN 55 B5254S (1998)

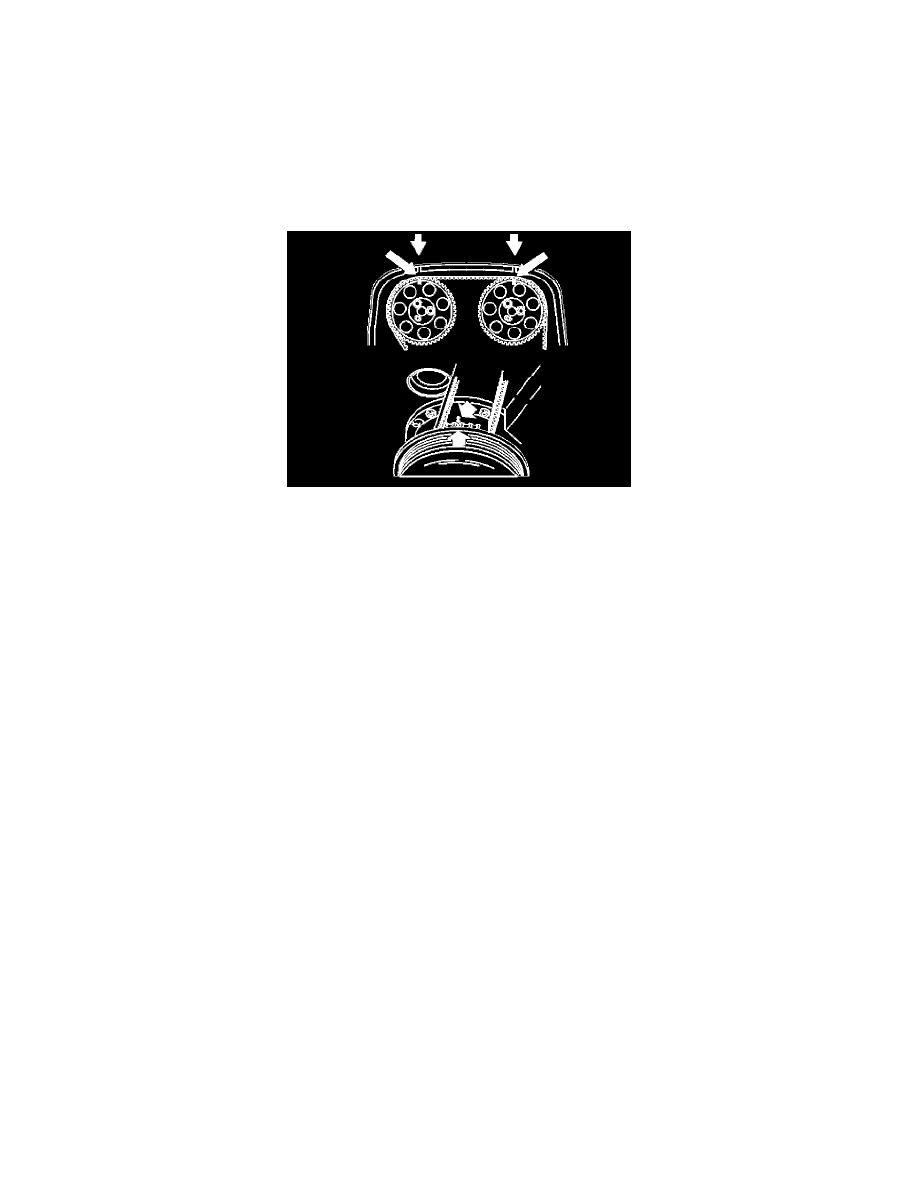

With Straight Up Camshaft Alignment Marks
REPLACING TIMING BELT/IDLER PULLEY/BELT TENSIONER B 52X4 S
Removing timing belt
Remove components
Caution!
Remove the ignition key from the ignition switch before beginning work.
Note!
Crankshaft or camshaft must not be rotated under any circumstances more than is listed below. Failure to follow these instructions may
cause damage to the valves.
Remove:
-
upper timing belt cover.
