S70 AWD L5-2.4L Turbo VIN 56 B5254T (1999)
Parking Brake Cable: Service and Repair
Brake Cable (Later Version), Replacement
Brake cable (later version), replacement
Note: There are two types of cable cover.
Older version:
^
cable cover with loose guide sleeve towards endpiece.
Later version:
^
cable cover with fixed plastic guide sleeve towards endpiece. The removal and installation procedures are different for the two types. Follow
instructions for the appropriate type.
Preparations
^
Check that ignition is switched off.
Removing center console
^
Remove cigarette lighter panel (2 bolts). If DLC is fitted, remove this from panel first.
^

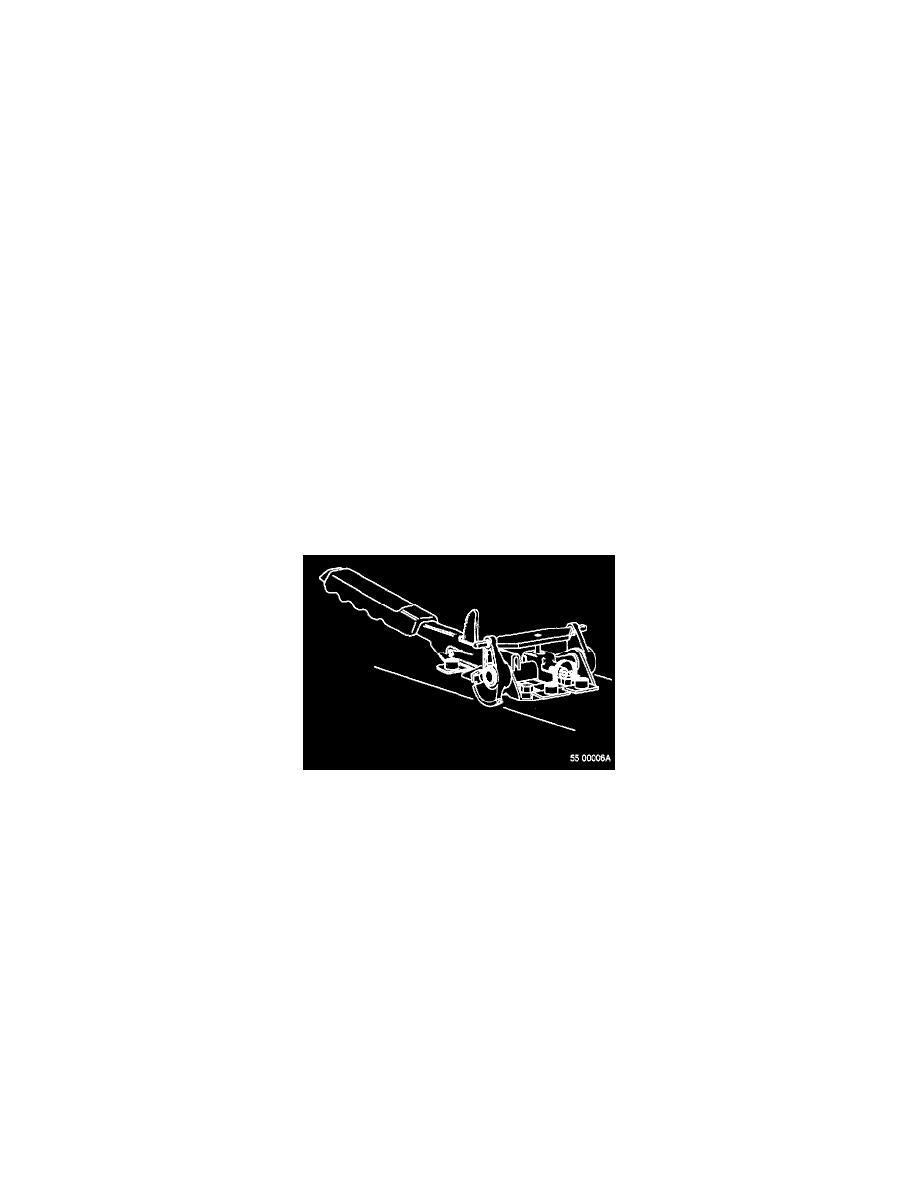

Put parking brake on and put gearshift in neutral.
^
Remove the two cover panels, one under the handbrake lever and the other under the armrest.
^
Remove the four console bolts.
^
Undo the connectors at the front of the console.
Cars with manual gearshift:
Undo gearshift gaiter from tunnel console by pressing on gaiter's rear snap fastening from underneath through the hole under the parking brake lever.
^
Lift rear end of console first and press it forwards until the parking brake lever comes free of the console crossmember.
^
Now lift front edge and remove console.
Removing cable
^
Remove rear wheel.
^
Remove cable clip mounting bolt located in front of rear wheel arch.
^
Remove cable clip and rivet on carrier arm.
^
Undo cable from carrier arm endpiece by bending cable cover guide sleeve up and down moderately.
^
Remove cable rear end from grip on expander.
^
Remove cable.
Installing cable
