S70 GLT L5-2.4L Turbo VIN 56 B5254T (1998)

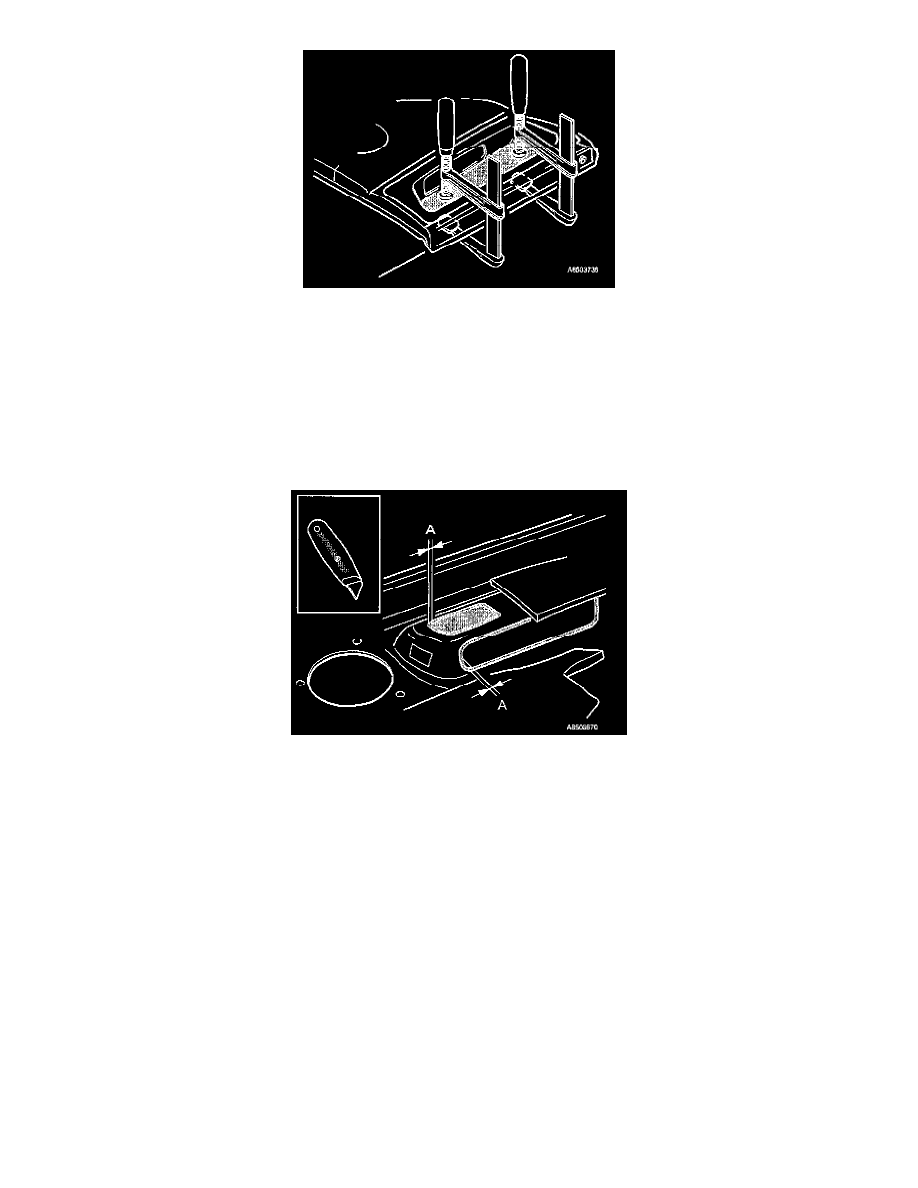

After clamps are secured let stand for glue to cure. Leave clamp(s) in place, preferably for more than one half hour, to ensure proper curing.
Complete steps 1-17 on opposite panel before proceeding to step 18.
18
Complete the cut-out for the handle and the switches
Remove the press tools.
Complete the cut out for the switches and the grab handle in the insert using a sharp knife.
Leave 4 mm extra material around the openings (A). Remove the masking tape around the insert.
19
Install the holder
Install the holder in the cut out.
Assure correct fit between holder and door panel and adjust if necessary!
Install springs (see illustration in step 20).
