S70 GLT L5-2.4L Turbo VIN 56 B5254T (1998)
-
3 connectors.
-
Lift the tunnel compartment up at the rear edge and pull it backwards.

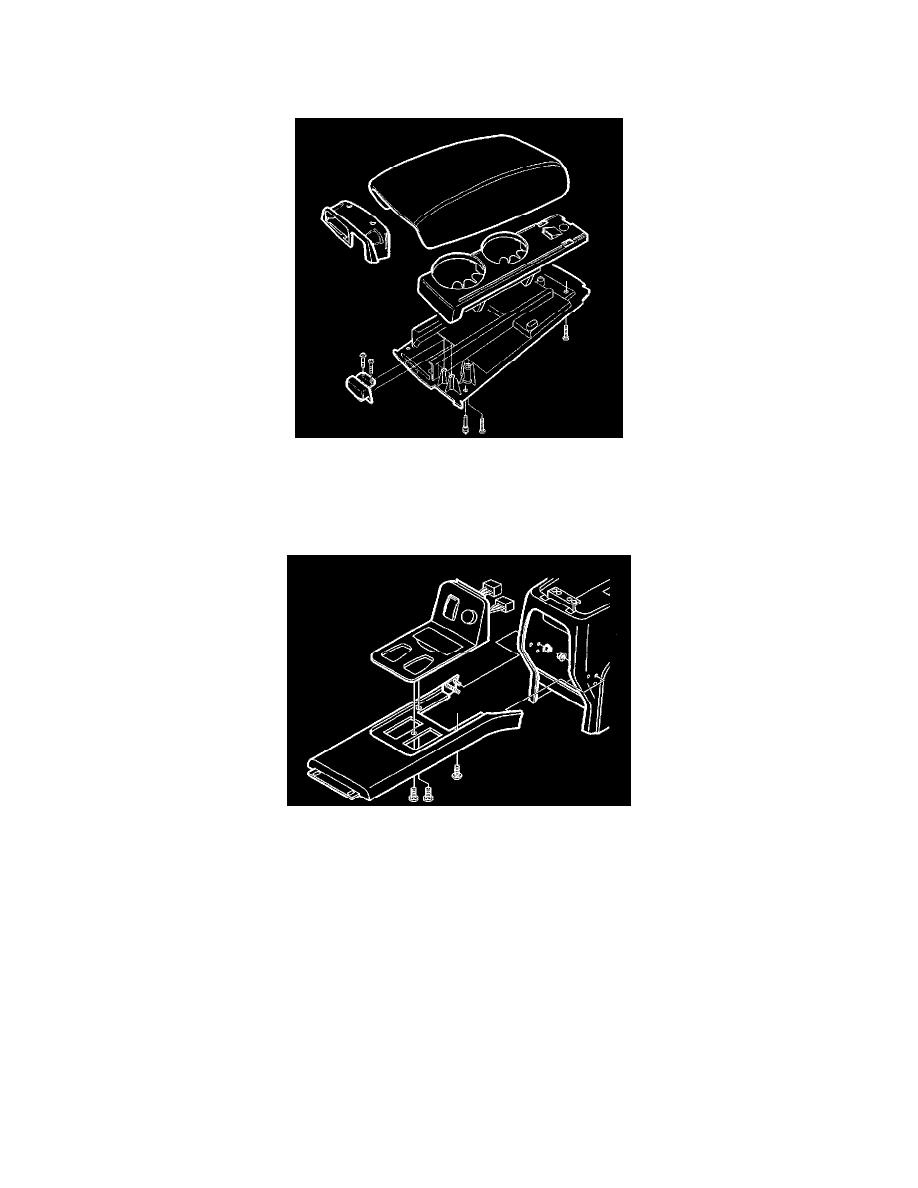

AFC4. Removal of Arm-Rest on the Tunnel Compartment:
Remove:
-
4 screws from the lower section.
-
2 screws from the lock.
AFC5. Removal of Rear Panel:
Remove:
-
the connector from the loudspeaker switch..
-
the connector from the 12 volt socket.
-
6 nuts from the side.
-
3 screws from below.
AFC6. Installation of the Rear Panel:
