Page 6
background image

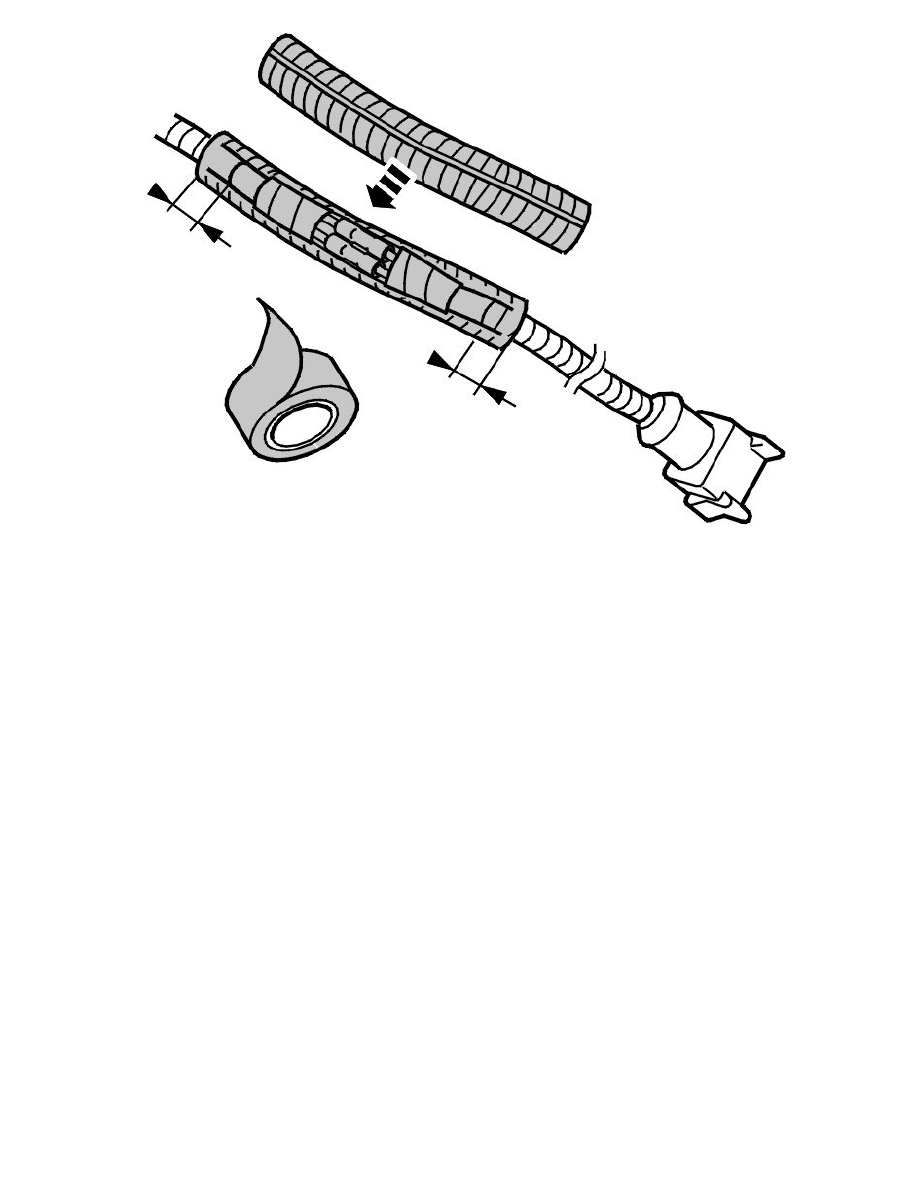

Thread the thicker protective tube from the kit over the join.
Adjust the length so that it overlaps the thinner protective tubes by approximately 10 mm on each side.
Wind insulation tape around the join.

Installation

Installing the water pump and rubber cap
