S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Auxiliary Power Outlet: Service and Repair
Cigarette Lighter / Electrical Socket, Front, Replacing
Cigarette lighter / electrical socket, front, replacing
Removal
Cigarette lighter and electrical socket
-
Ignition off
-
Remove the dashboard environment panel / electronic climate control module. See Dashboard environment panel (including climate control
module (CCM)), replacing See: Heating and Air Conditioning/Control Assembly/Service and Repair/Dashboard Environment Panel (including
Climate Control Module (CCM)), Replacing
-
Remove the cigarette lighter socket
-
Disconnect the connectors from the dashboard environment panel / electronic climate control (ECC) control module
-

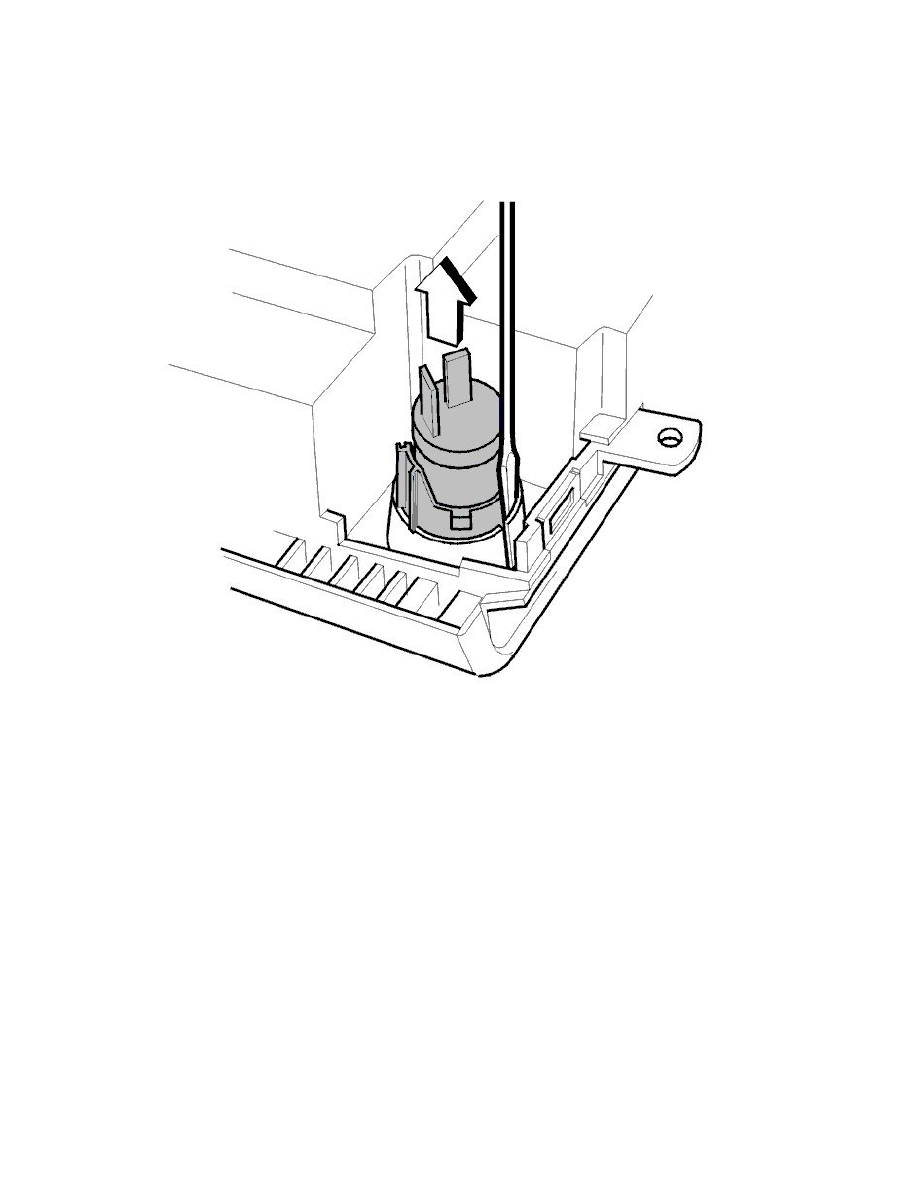

Tension the lower catch using a small screwdriver. Press out the lighter sleeve so that the catch releases. Maintain the pressure so that the lighter
sleeve does not jump back in.
-
Tension the upper catch. Press out the lighter sleeve.
Installation
Cigarette lighter and electrical socket
In reverse order.
Install the dashboard environment panel / electronic climate control module. See Dashboard environment panel (including climate control module
(CCM)), replacing See: Heating and Air Conditioning/Control Assembly/Service and Repair/Dashboard Environment Panel (including Climate Control
Module (CCM)), Replacing.
