S80 2.9 L6-2.9L VIN 94 B6294S (2000)

Page 29
background image

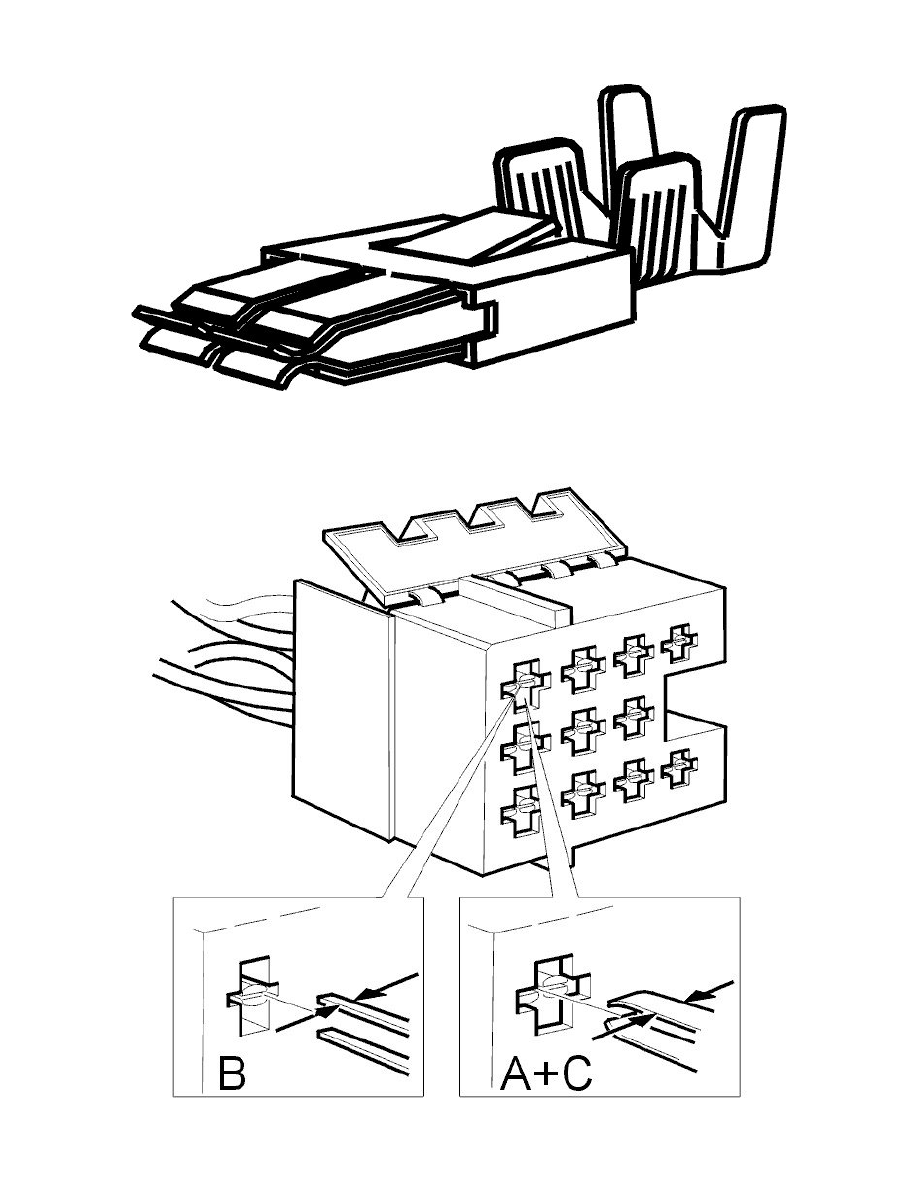

B 2.8 Timer and 2.8 Timer sws

C 6.3 Timer

Choose the terminal removal tool with the correct width

There are two sizes of cavity opening.
