S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-

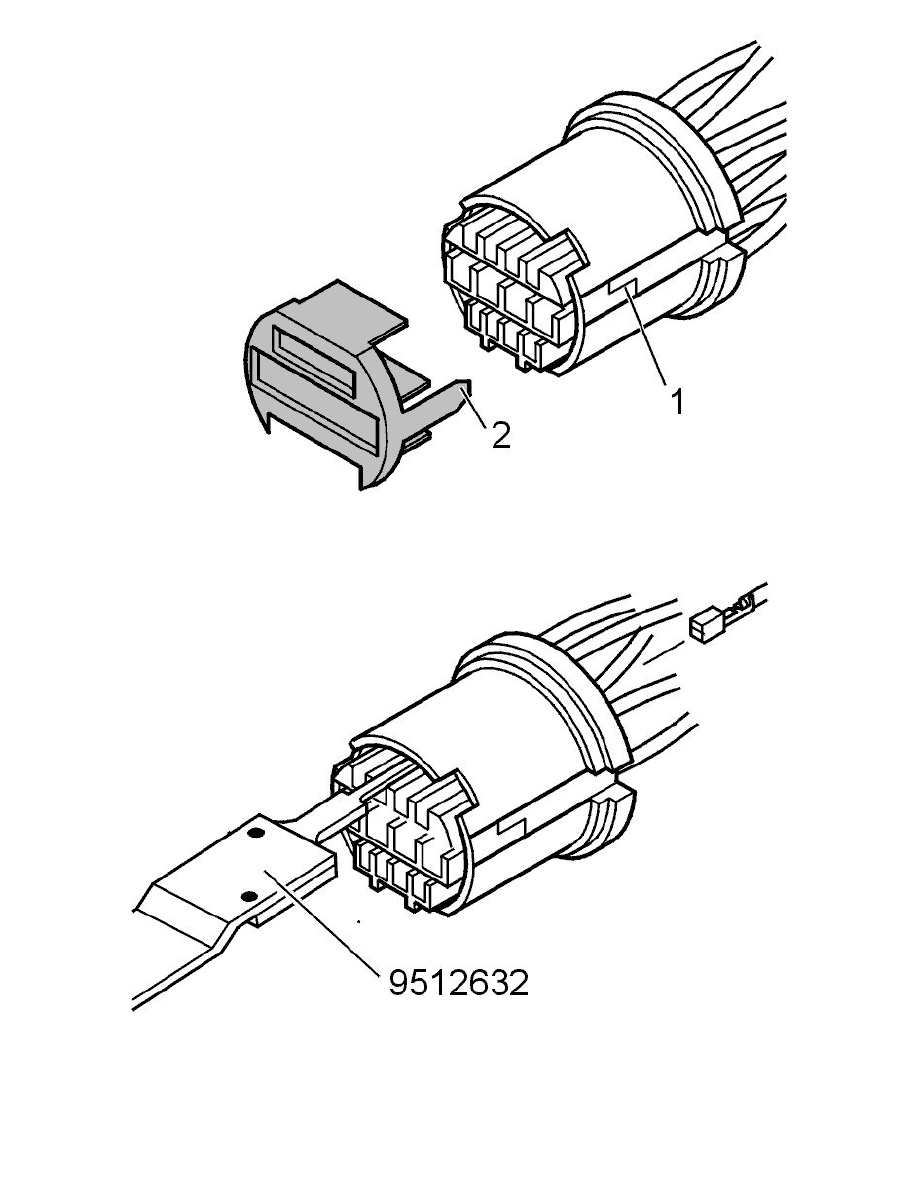

Release the front housing section of the socket housing.
-
Remove the cable terminal, see Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal Removal Tools.
-
Replace cable terminal. Selecting cable terminal, see New cable terminal See: Replacing Cable Terminals/New Cable Terminal.
Hint: The following cable terminals are available for the relevant pin housing: 916 8503, 916 8505, 916 8509, 916 8513.
