S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-

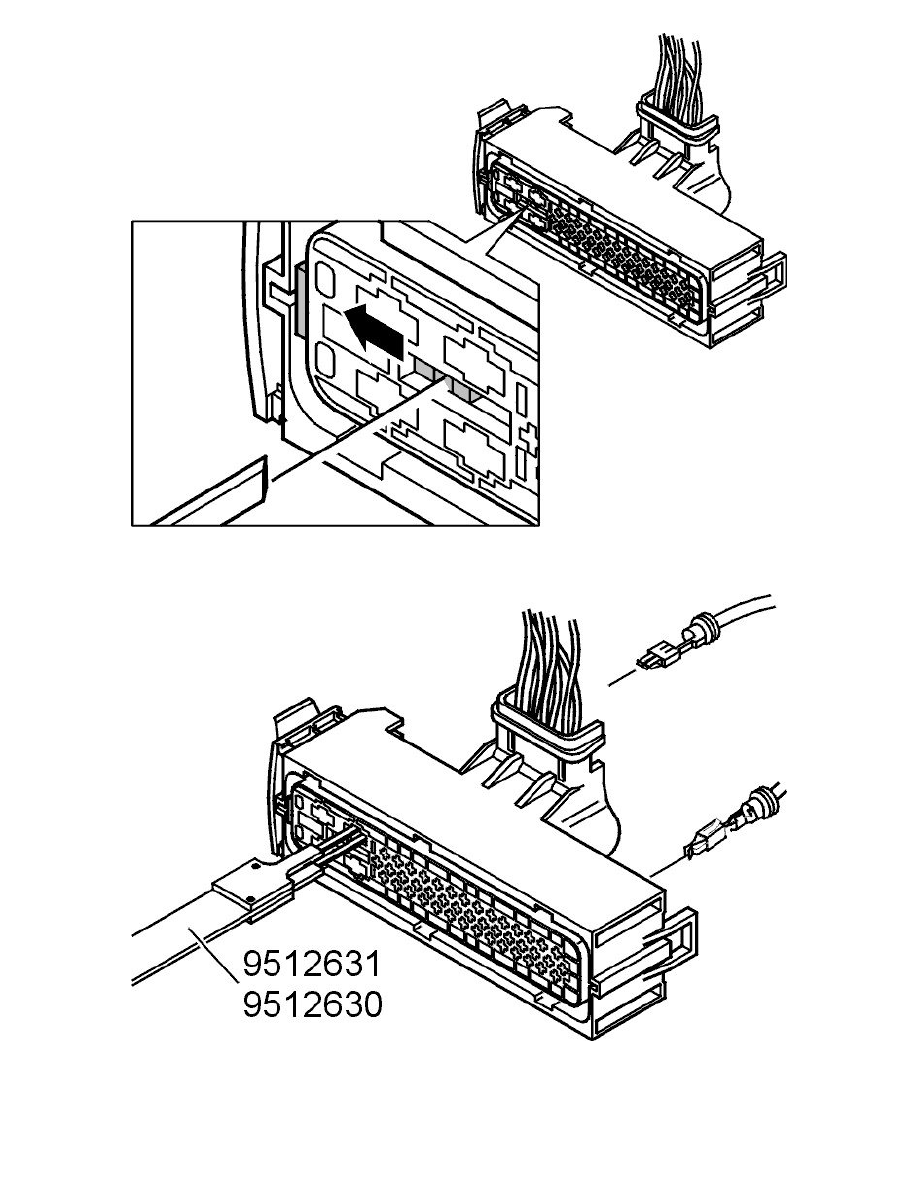

Set the secondary locking to the open position.
Hint: Use terminal removal tool951 2633 Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool.
-
Remove the cable terminal, see When the cavity opening has two extraction grooves See: Diagrams/Diagnostic Aids/Cavity Opening Has Two
Extraction Grooves.
Hint: Use terminal removal tool951 2630 Terminal removal tool See: Tools and Equipment/951 2630 Terminal Removal Tool or951 2631
Terminal removal tool See: Tools and Equipment/951 2631 Terminal Removal Tool.
