S80 2.9 L6-2.9L VIN 94 B6294S (2000)

Page 46
background image

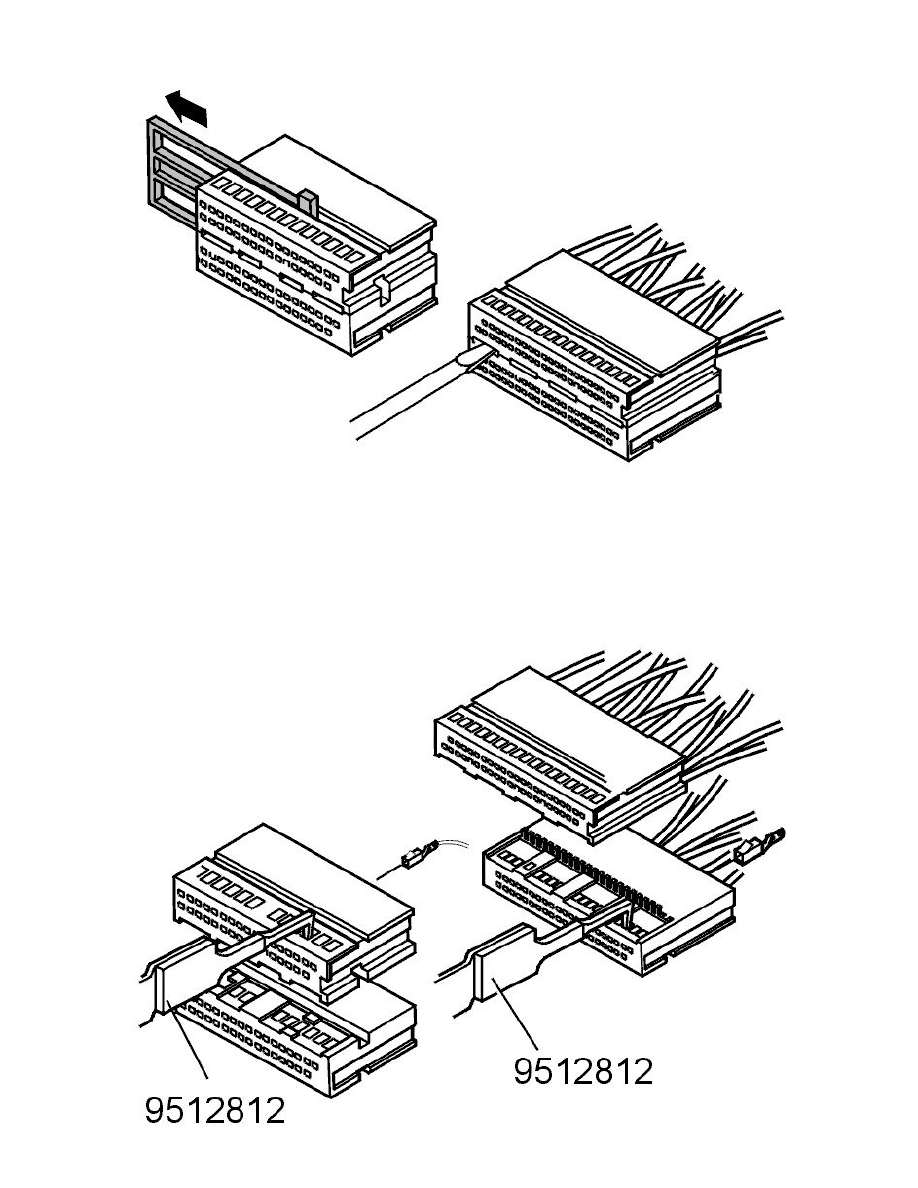

Release the catch and slide out the lock mechanism.

Hint: Use a radio screwdriver.

Connector with passive locking
