S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-
Strip the cable, see Stripping the cable See: Stripping a Cable/Stripping the Cable
-
Replace the cable terminal. To select a cable terminal, see New cable terminal See: Replacing Cable Terminals/New Cable Terminal
Hint: The following cable terminals are available for the relevant connector: 352 3469, 352 3470, 944 1588, 944 1589, 944 1590.
-

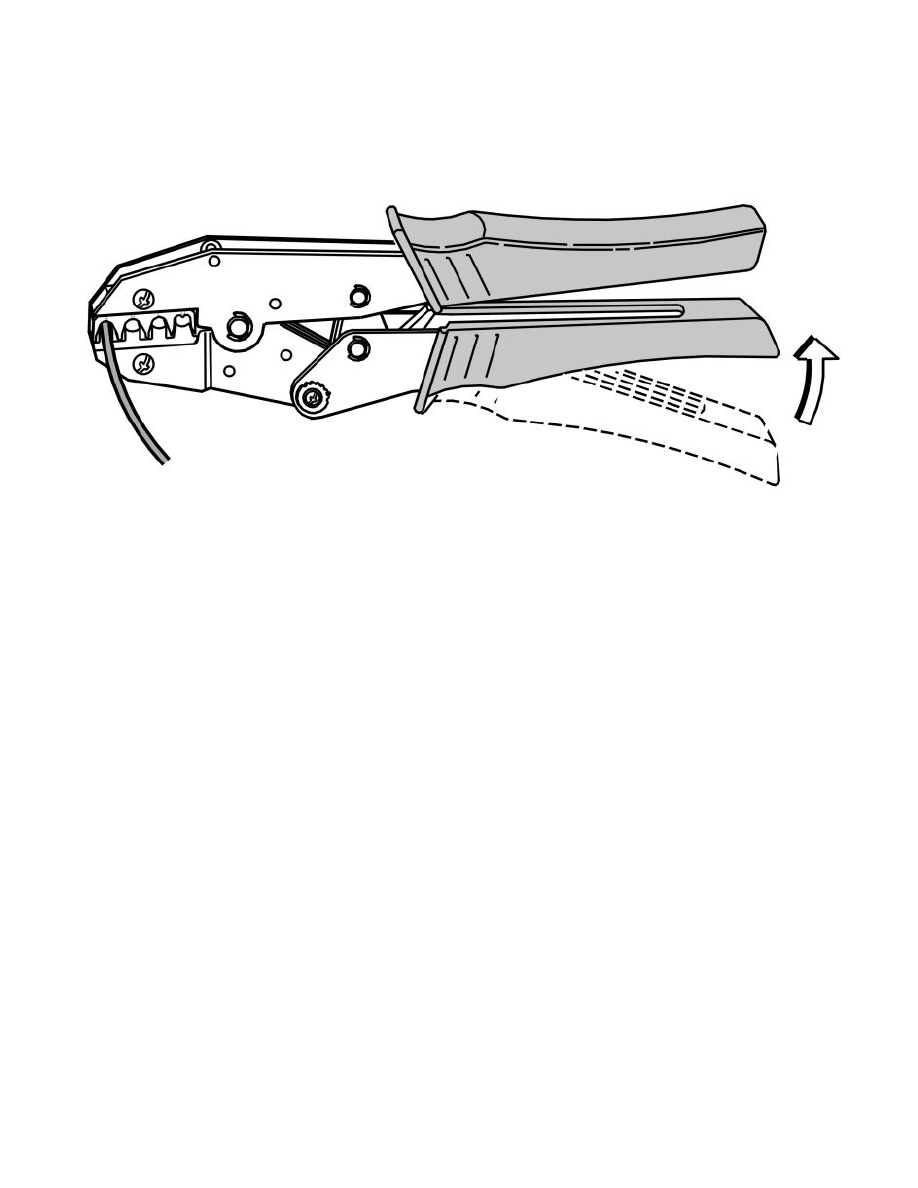

Crimp the cable terminal, see Crimping a cable terminal See: Terminal Crimping/Crimping a Cable Terminal.
Insert the new cable terminal
-
Insert the new cable terminal in the receptacle housing from the cable side (in the correct position). A click is heard when it hooks into place
-
Carefully pull on the cables to check that the terminal is firmly attached.
Reassemble the connector
