S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Hint: Use terminal removal tool951 2632 Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool ,951 2633
Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool or951 2639 Terminal removal tool See: Tools and
Equipment/951 2639 Terminal Removal Tool.

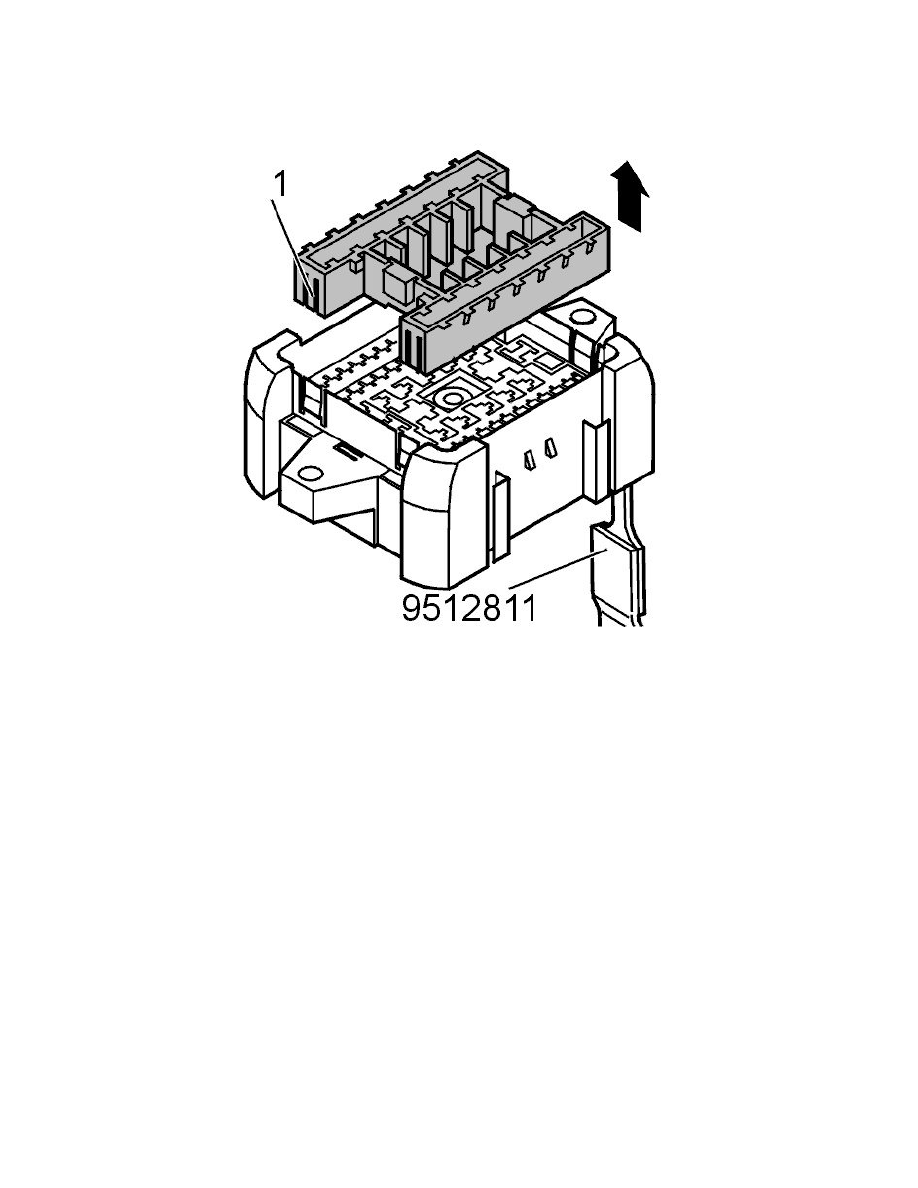

Extract the cable terminal, socket housing
-
Remove the front housing section from the pin housing. By releasing the locking tab from the cable side. Release all the locking tabs and press the
housing section forward.
Hint: Use terminal removal tool951 2639 Terminal removal tool See: Tools and Equipment/951 2639 Terminal Removal Tool.
