S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Note! The results of the crimping process are entirely dependant on the use of the correct tools and method of carrying out the crimping.
Crimping contacts on different cable terminals
There are various designs and shapes of cable terminals that can be crimped. The type of cable terminal is determined by factors such as the cable used,
the joint design, tool type, intended use etc.
The crimping tools in the repair kit p/n 981 4235 Replaced by 9512644 See: Tools and Equipment/981 4235 Replaced by 951 2644 have different
crimping inserts to suit most types of cable terminal.
Terminal crimping insulated butt connectors and insulated ring cable terminals
To crimp insulated moisture proof butt connectors and insulated ring cable terminals, use the crimp tool recommended in New cable terminal See:
Diagrams/Diagnostic Aids/New Cable Terminal Seal sws and plug See: Replacing Cable Terminals/Seal SWS and Plug.
Cable Terminals - Crimping Core Wings
Cable terminals - crimping core wings
Insulated cable terminals

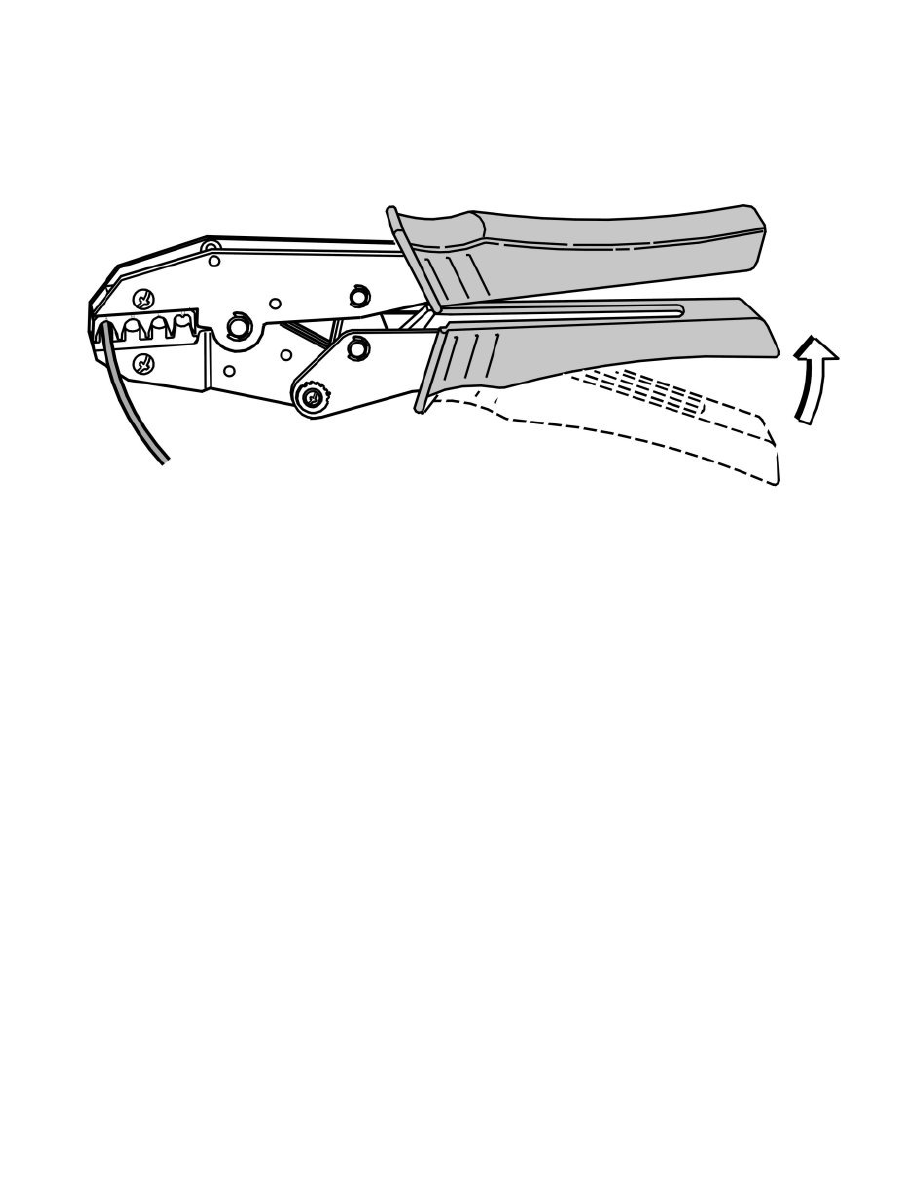

Crimping core wings, shape
