S80 2.9 L6-2.9L VIN 94 B6294S (2000)

Page 219
background image

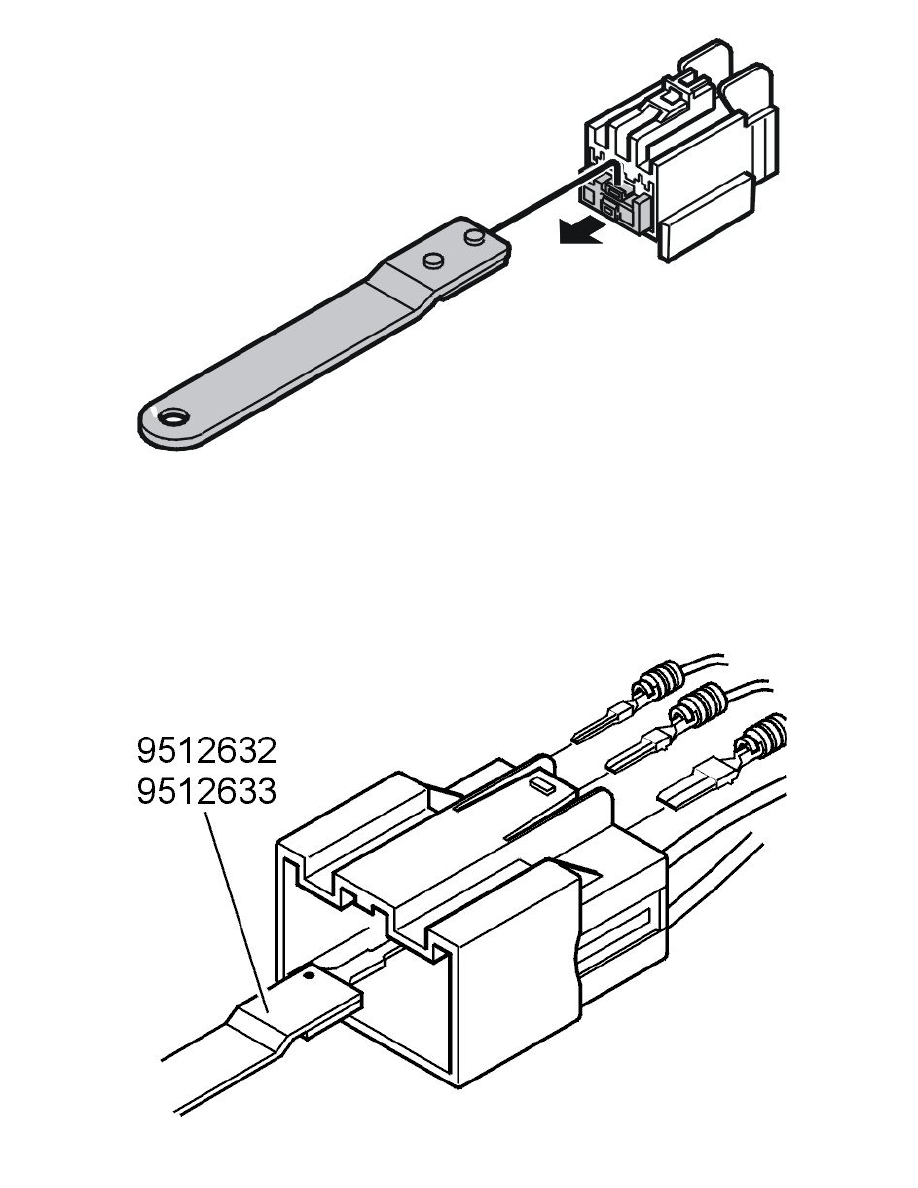

Socket housing

Open the catches and pull out the secondary lock, use tool951 2853 Terminal removal tool See: Tools and Equipment/951 2853 Terminal Removal Tool
or an electrician's screwdriver, as illustrated.
