S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Incorrect crimping as shown above can be caused by:
-
Stripping the cable too short or too long.
-
Incorrect location in the cable terminal.
-
The cable terminal was incorrectly located in the crimp tool forming section.
Central Electrical Unit 1
Central electrical unit 1
Replacing cable terminals

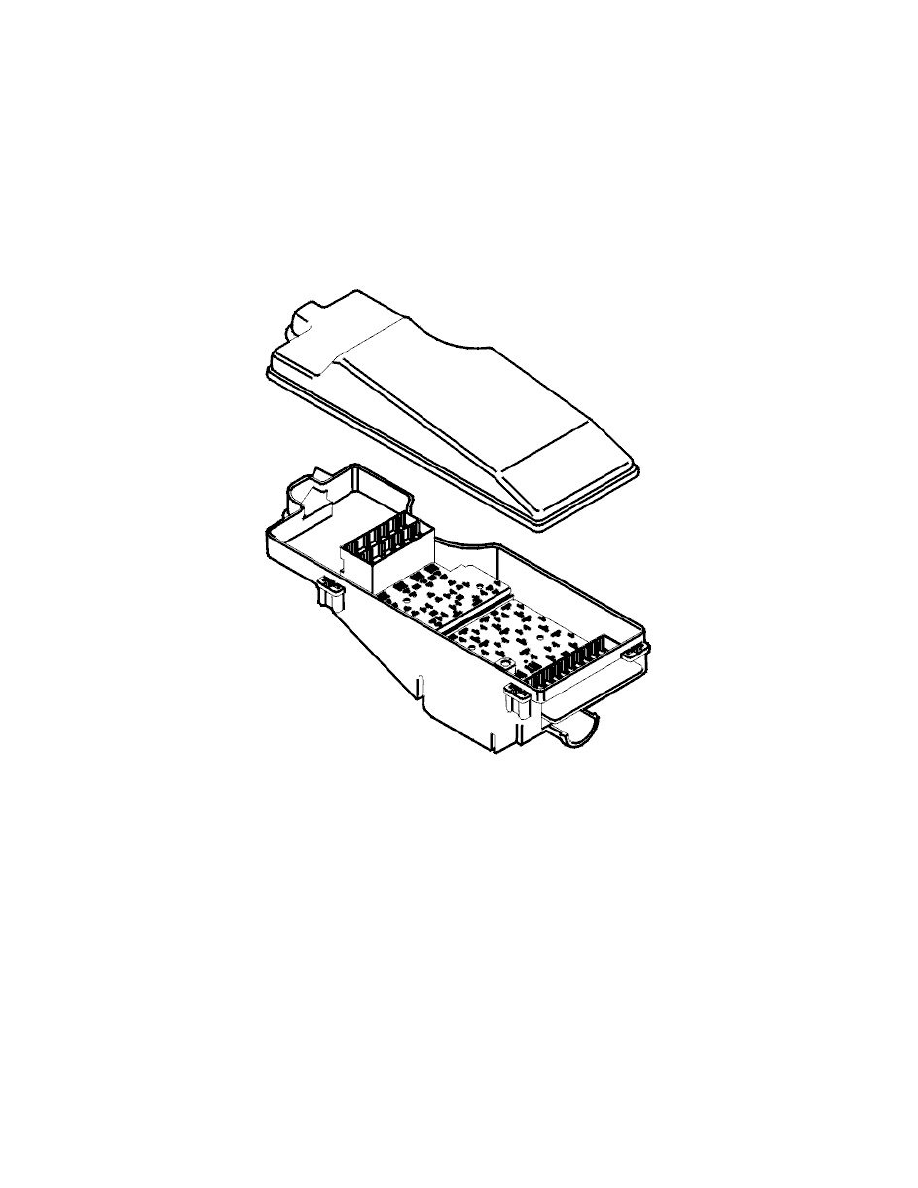

Exposing the central electrical unit
-
Remove the cover from the central electrical unit: Release the catch on the cover.
Replacing the cable terminal, relay section
