S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-

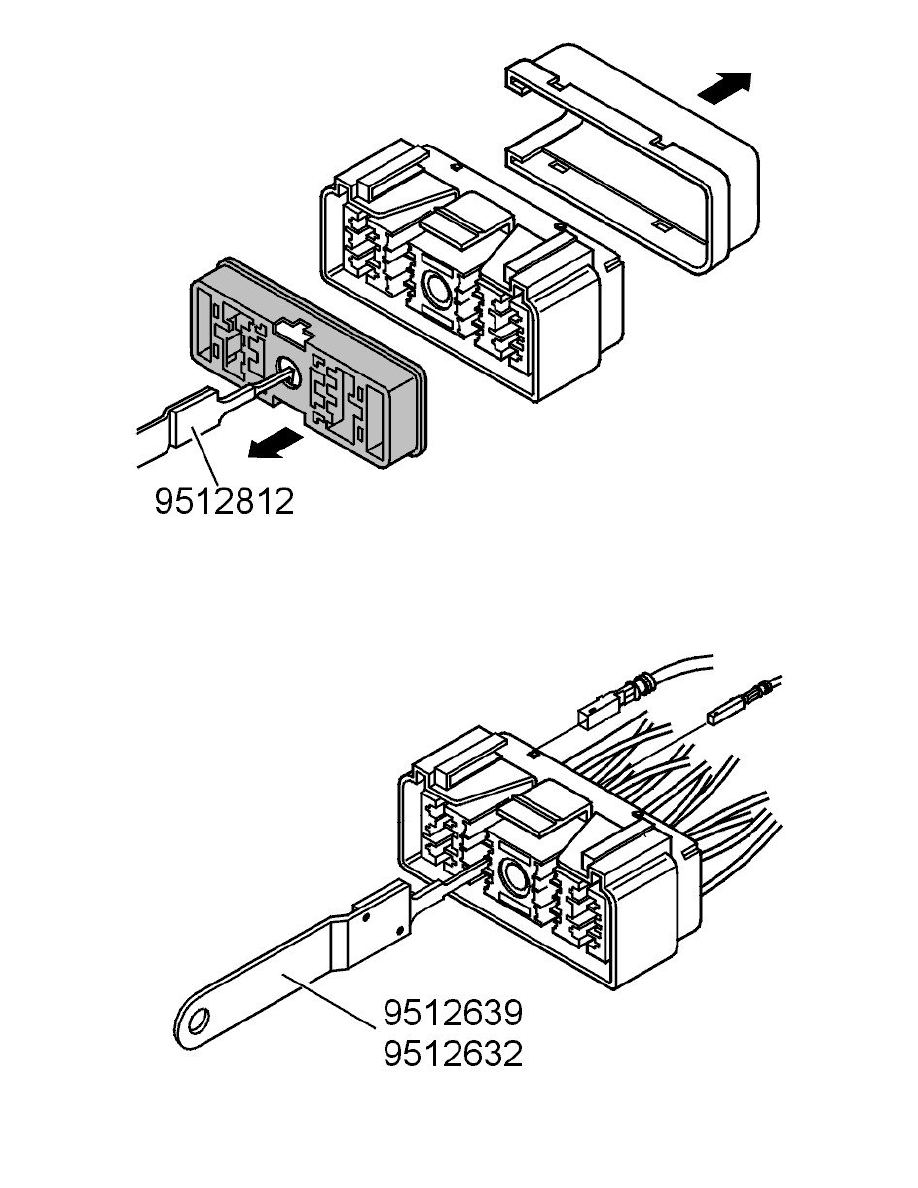

Remove the protective cover from the connector by releasing the catches at the same time the cover is removed.
Hint: Use terminal removal tool951 2812 Terminal removal tool See: Tools and Equipment/951 2812 Terminal Removal Tool.
-
Remove the front housing section from the pin housing by pulling it out.
Hint: Use terminal removal tool951 2813 Parts box B See: Tools and Equipment/951 2813 Parts Box B.
