S80 2.9 L6-2.9L VIN 94 B6294S (2000)
The cable terminal is 1.6 Pin socket.
-
Use strip length 3 to 4 mm and strip the cable as described in Cutting and checking a cable See: Stripping a Cable/Cutting and Checking a Cable
Stripping the cable See: Stripping a Cable/Stripping the Cable.
-

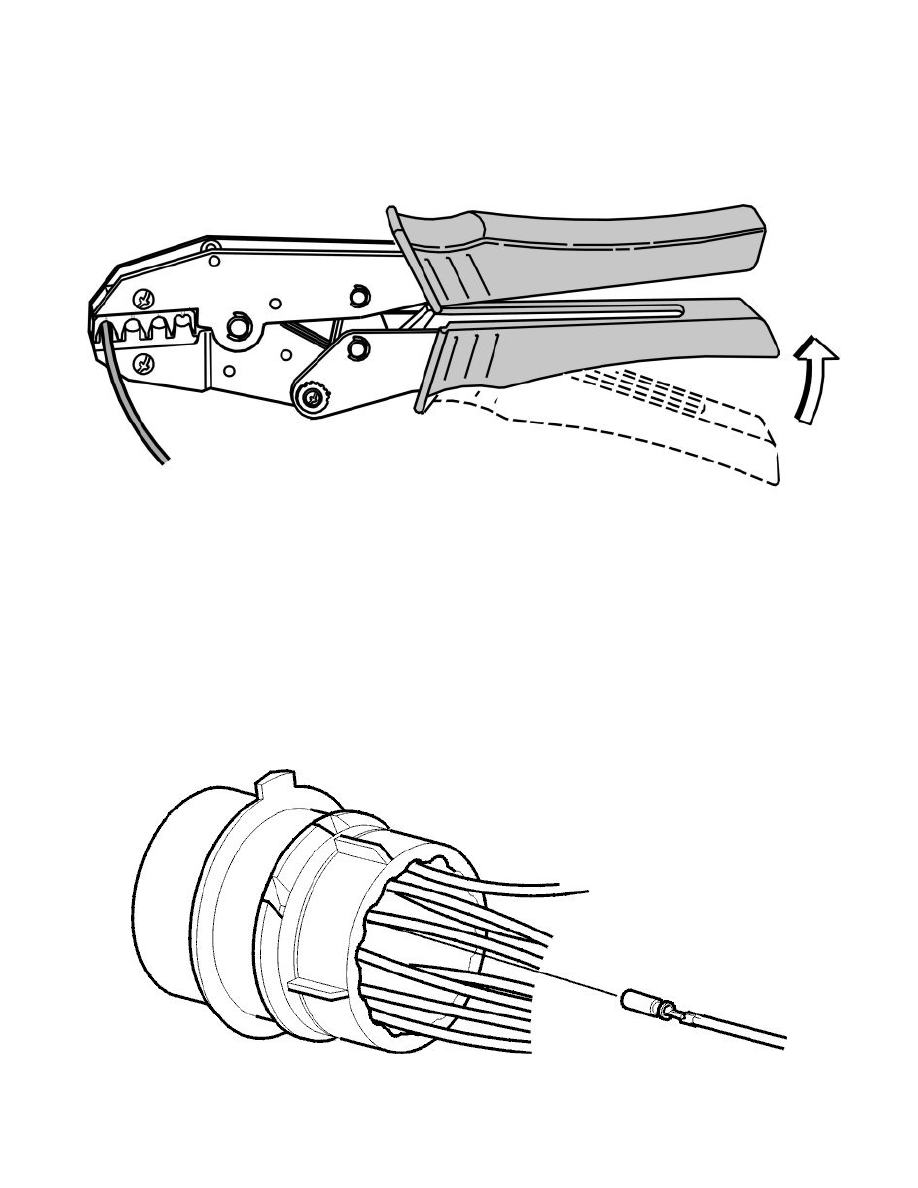

Use crimp tool (green) p/n 981 4226 Crimping tool See: Tools and Equipment/981 4226 Crimping Tool and crimp the cable terminal as
described in Crimping a cable terminal See: Terminal Crimping/Crimping a Cable Terminal.
Insert new cable terminal in housing
Note! Note! The housings secondary locking must be open, see Open socket housing.
-
Insert the new cable terminal in the correct socket housing cavity from the cable side. A "click" indicates that the catch has engaged.
