S80 2.9 L6-2.9L VIN 94 B6294S (2000)

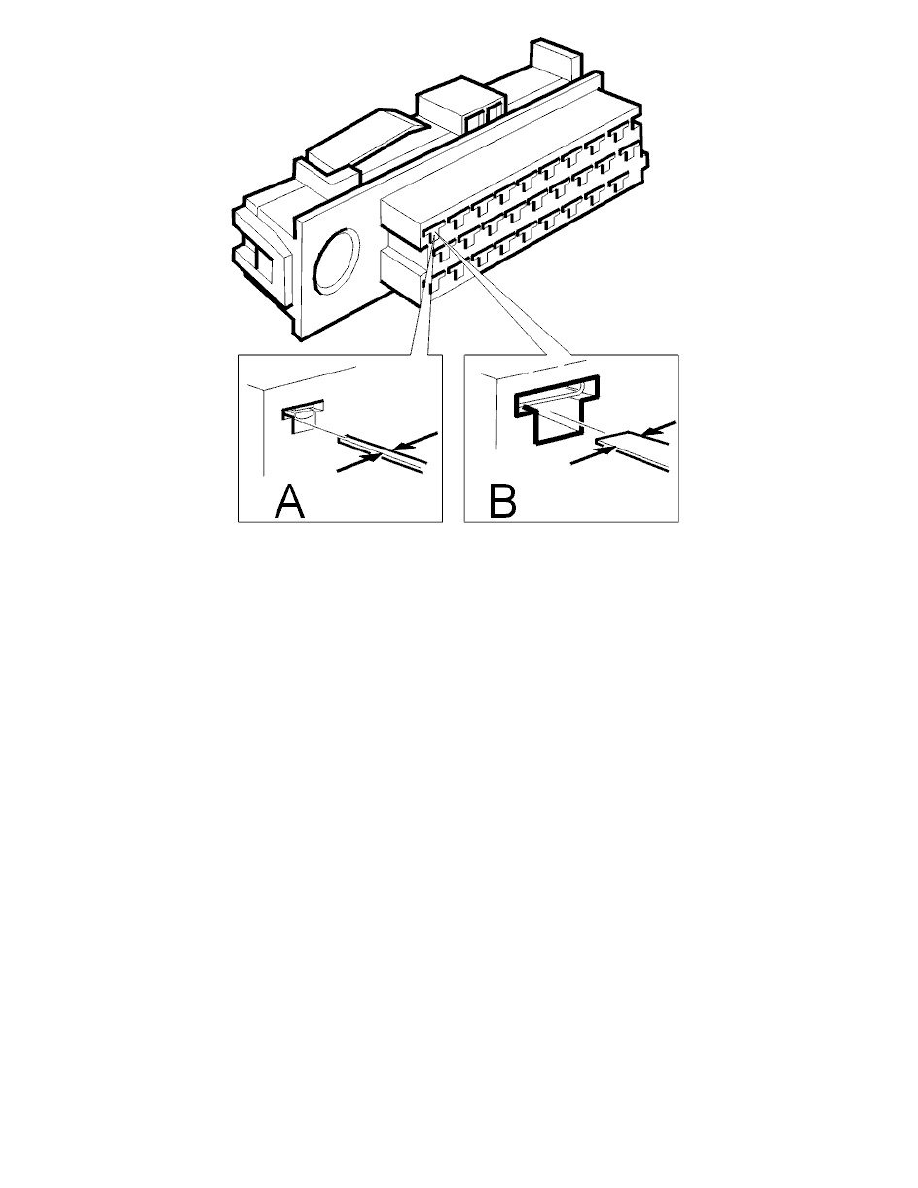

There are two sizes of the cavity opening.
See illustration.
Choose a terminal removal tool with ends which match the cavity opening extraction groove.
-
The narrow ends are 1.5 mm wide.
-
The wider ends are 2.7 mm wide.
Press the cable terminal in the cavity forwards as far as it will go to free the locking tab from the cavity catch.
Insert the terminal removal tool in the groove as illustrated.
Always follow the instructions in When secondary locking is of the lid type See: Open the Connector/When Secondary Locking Is of the Lid Type which
give the correct working procedure.
-
Proceed to chapter New cable terminal See: Diagrams/Diagnostic Aids/New Cable Terminal Seal sws and plug See: Replacing Cable
Terminals/Seal SWS and Plug. Replacing a cable terminal in order to crimp a new cable terminal.
Examples of Correct Terminal Crimping
Examples of correct terminal crimping
Checking crimping results
