S80 2.9 L6-2.9L VIN 94 B6294S (2000)

Page 94
background image

-

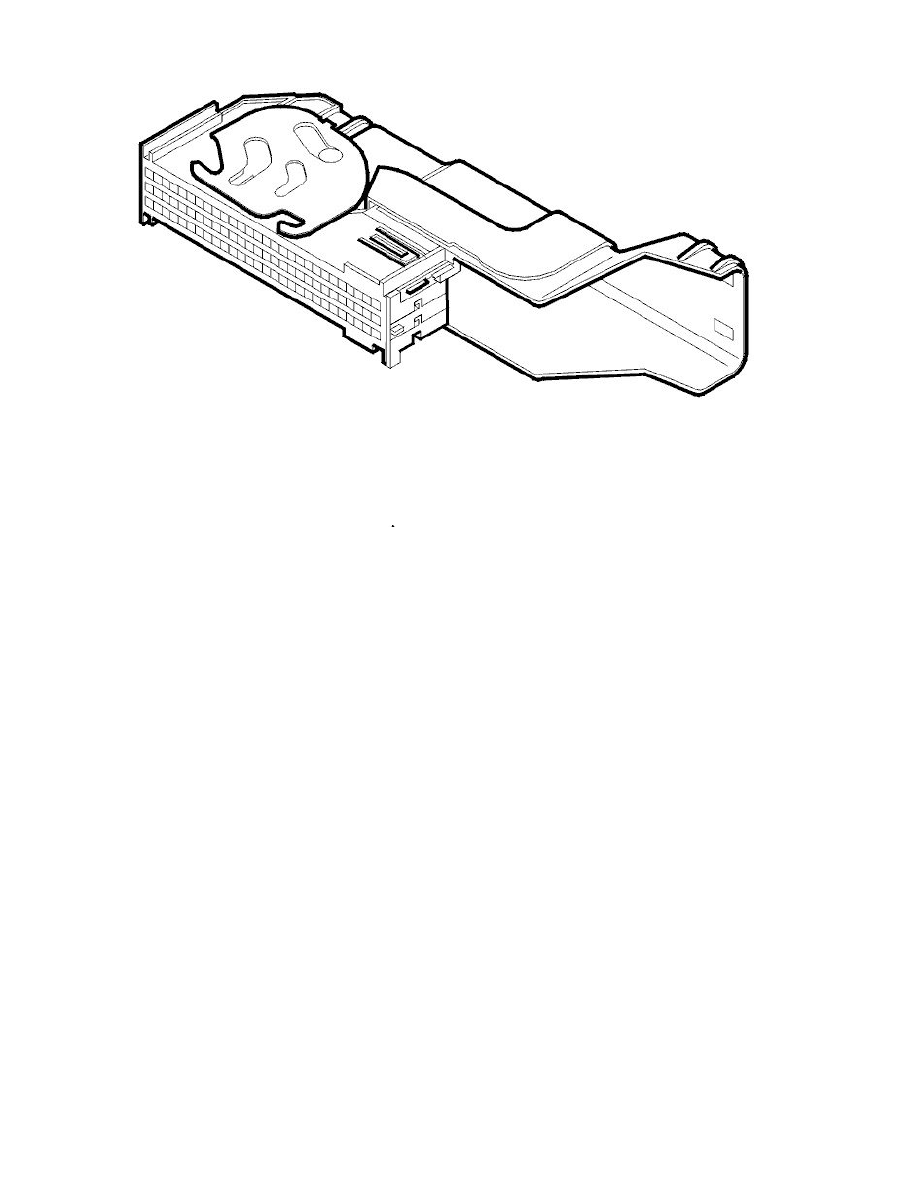

Remove connector cover.

-

Separate the connector.
Caution! Never pull on the cables when separating.

Exposing the receptacle housings
