S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-
Remove the protective cover from the connector by releasing the catches at the same time the cover is removed.
Hint: Use terminal removal tool951 2811 Terminal removal tool See: Tools and Equipment/951 2811 Terminal Removal Tool.
-

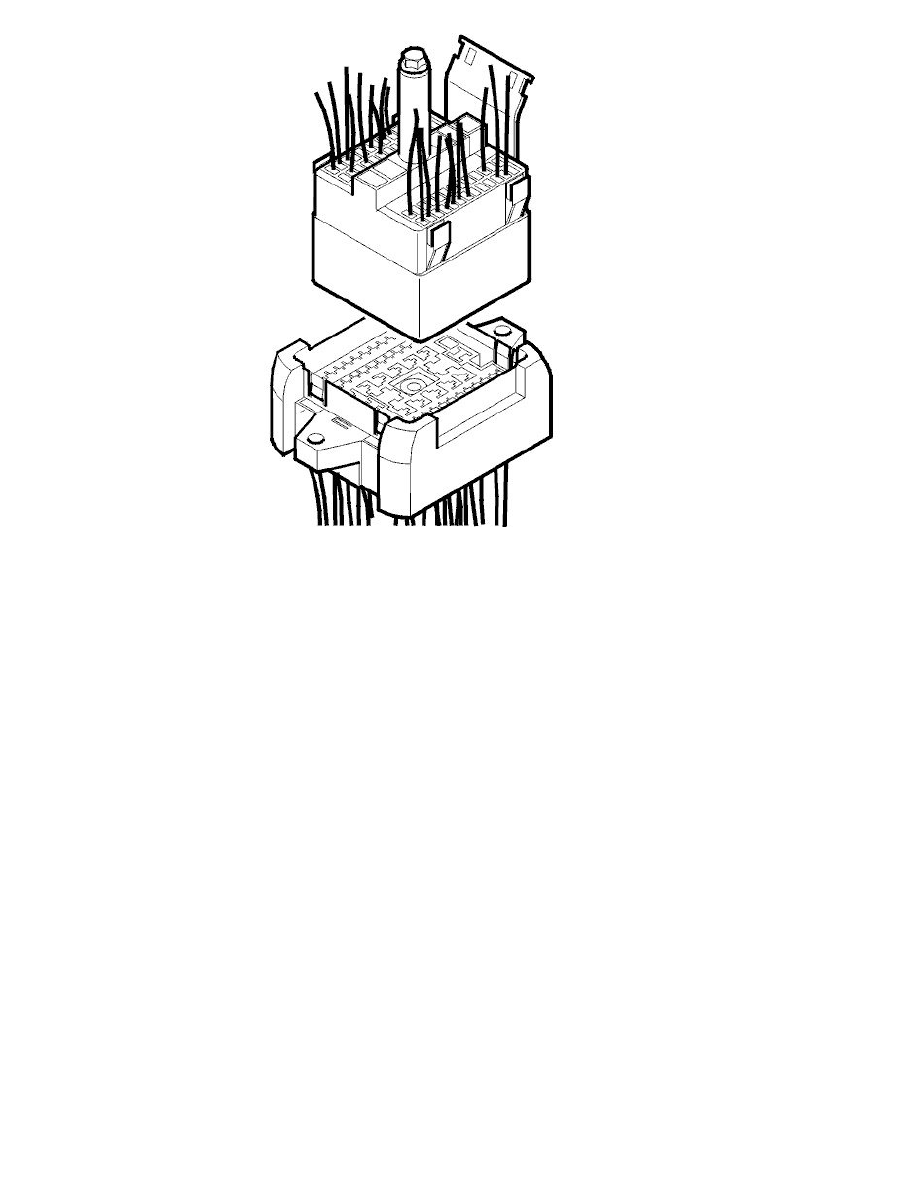

Unscrew the screw holding the connector halves.
-
Separate the connector halves.
Caution! Never pull on the cables when separating.
Extract the cable terminal, pin housing
