S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-
Strip the cable according to, see Stripping the cable See: Stripping a Cable/Stripping the Cable.
-
Replace cable terminal. Selecting cable terminal, see New cable terminal See: Replacing Cable Terminals/New Cable Terminal.
Hint: The following cable terminals are available for the relevant pin housing: 916 8503, 916 8505, 916 8511, 916 8513, 352 3472.
The following cable terminals are available for the relevant socket housing: 916 8502, 916 8504, 916 8508, 352 3470.
-

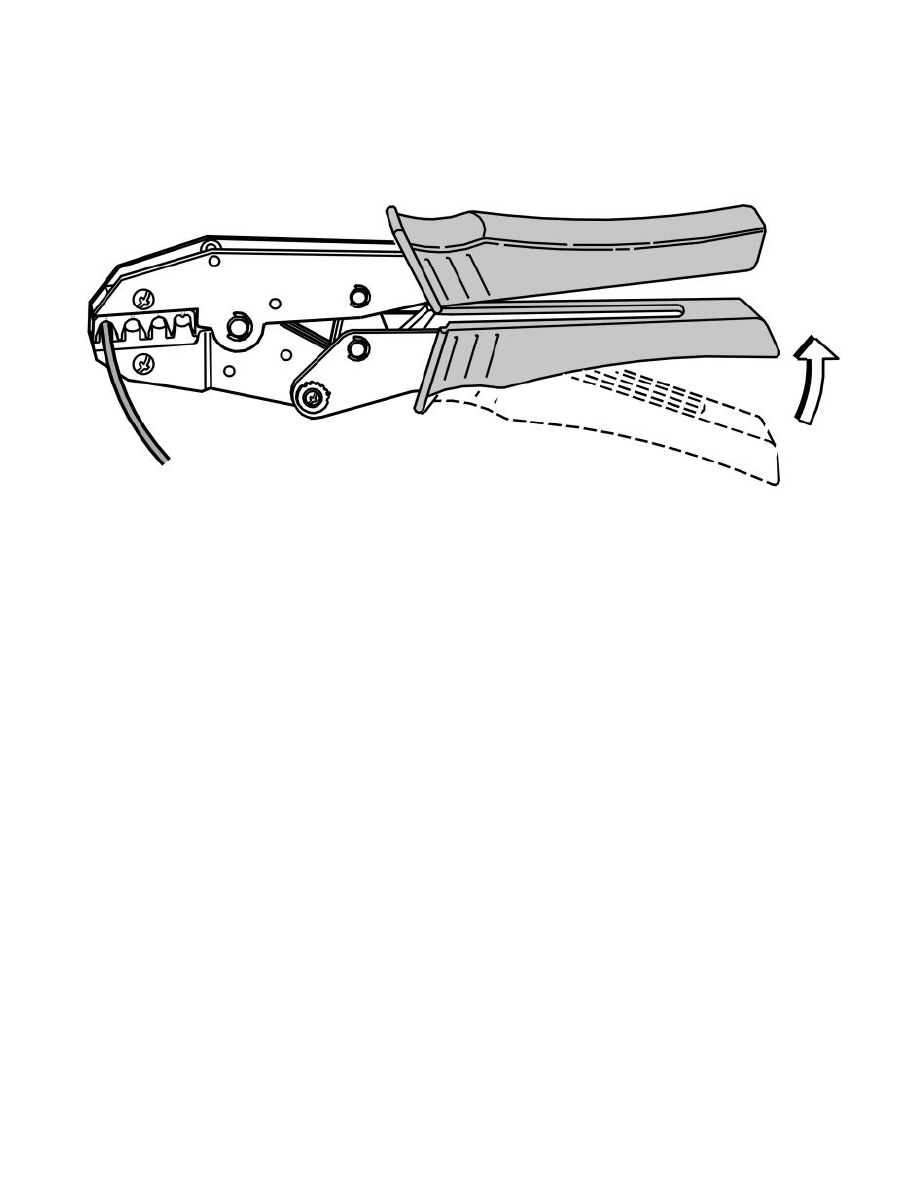

Crimp cable terminal, see Crimping a cable terminal See: Terminal Crimping/Crimping a Cable Terminal.
Insert the new cable terminal in the housing
-
Insert the new cable terminal in the receptacle housing from the cable side (in the correct position). A click is heard when it hooks into place.
-
Carefully pull on the cables to check that the terminal is firmly attached.
Reassemble the connector
