S80 2.9 L6-2.9L VIN 94 B6294S (2000)
The cable terminal is 1.6 Pin.
-
Use strip length 3 to 4 mm and strip the cable as described in Cutting and checking a cable See: Stripping a Cable/Cutting and Checking a Cable
Stripping the cable See: Stripping a Cable/Stripping the Cable.
-

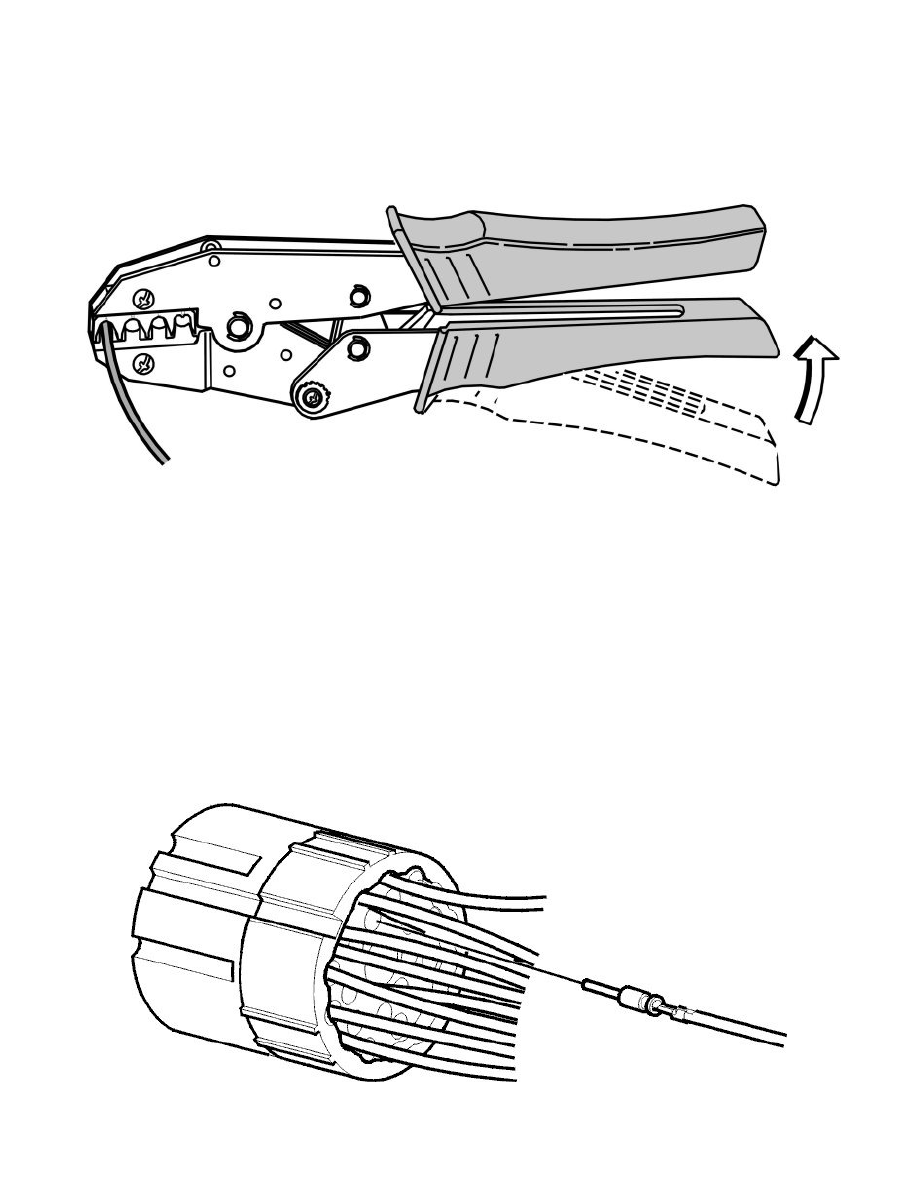

Use crimp tool (green) p/n981 4226 Crimping tool See: Tools and Equipment/981 4226 Crimping Tool and crimp the cable terminal as described
in Terminal crimping in general See: Terminal Crimping/Terminal Crimping in General Cable terminals - crimping core wings See: Terminal
Crimping/Cable Terminals - Crimping Core Wings Choice of crimp tool See: Terminal Crimping/Choice of Crimp Tool Crimping a cable terminal
See: Terminal Crimping/Crimping a Cable Terminal.
Insert the new cable terminal in housing
Note! The housing secondary locking must be open as in Open the pin housing.
-
Insert the new cable terminal in pin housing from the cable side in the correct cavity. A "click" indicates that the catch has engaged.
