S80 2.9 L6-2.9L VIN 94 B6294S (2000)

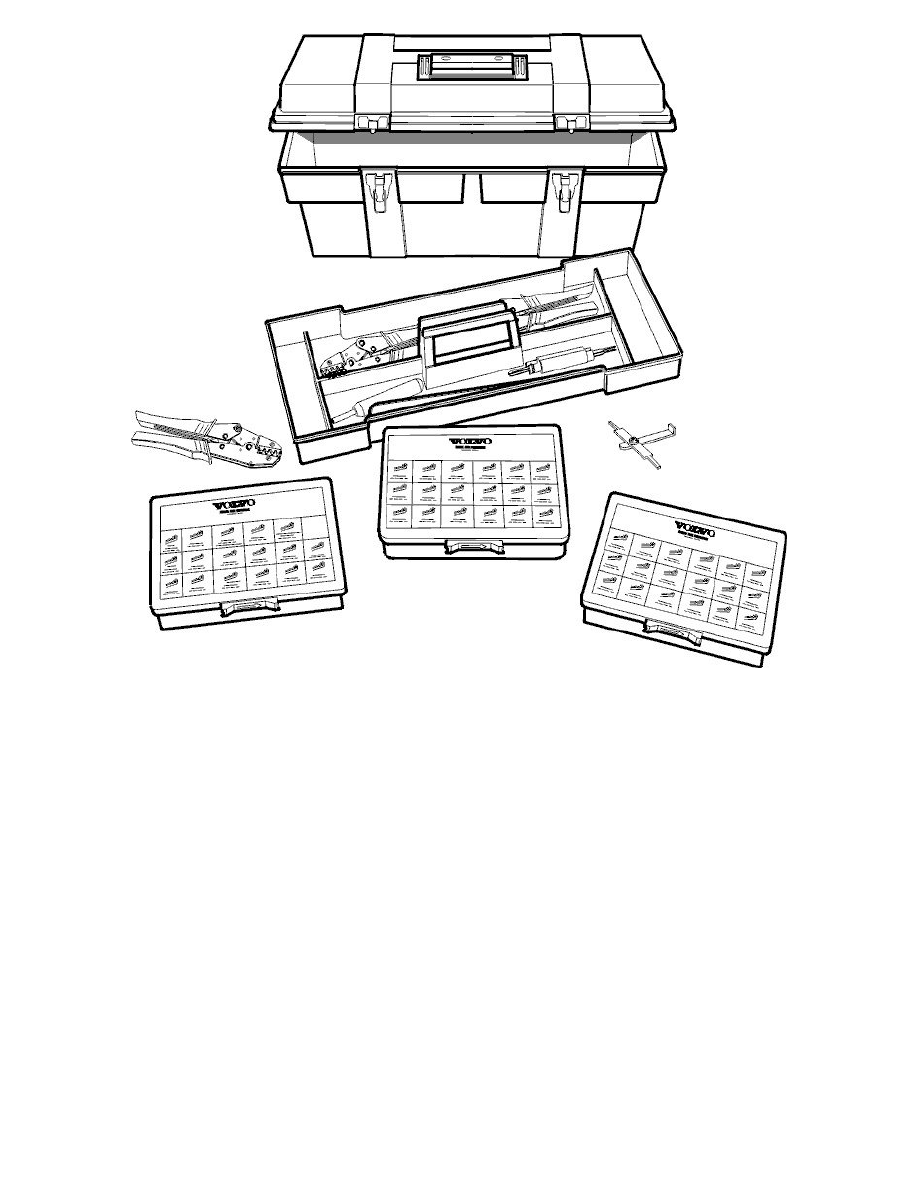

First compare the cable terminal removed from the housing with the cable terminals in the repair kit p/n 981 4235 Replaced by 9512644 See: Tools and
Equipment/981 4235 Replaced by 951 2644. Look inside the box lid and compare the terminal with those in the assortment available in the box.
Note! Cable areaWhen the correct type of cable terminal is identified choose one of the right size for the cable area required. Seal swsFor cable
terminals designated sws a seal must be used. See Seal sws and plug See: Replacing Cable Terminals/Seal SWS and Plug.
Stripping the cable insulation
-
Proceed to chapter Stripping the cable See: Stripping a Cable/Stripping the Cable.
If no similar cable terminal is available in the cable terminal assortment
If the cable terminal does not compare with any of those available in the assortment in the box, check in the relevant Spare Parts Catalogue.
Note! When the correct type of cable terminal is identified in the Spare Parts Catalogue, choose a cable terminal of the right size for the cable
area required and order the cable terminal.
Separate the Connector
Separate the connector
Warning! SRSNor cable repair or other repair work may be carried out on the SRS wiring.
If the connector halves (socket housing and pin housing) are connected together or if the connector is connected to a component, then the connector
halves must first be separated.
General instructions
