S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Installation
Insert the new cable terminal
Insert the new cable terminal in the receptacle housing from the cable side (in the correct position). A click is heard when it hooks into place.
Carefully pull on the cable to check that it is firmly attached.
Reassemble the connector
Assemble the secondary locks and slide the connector into the central electrical unit.
Connector Control Module for Anti-lock Brake System Module (ABS), Repair
Connector control module for Anti-lock Brake System Module (ABS), repair

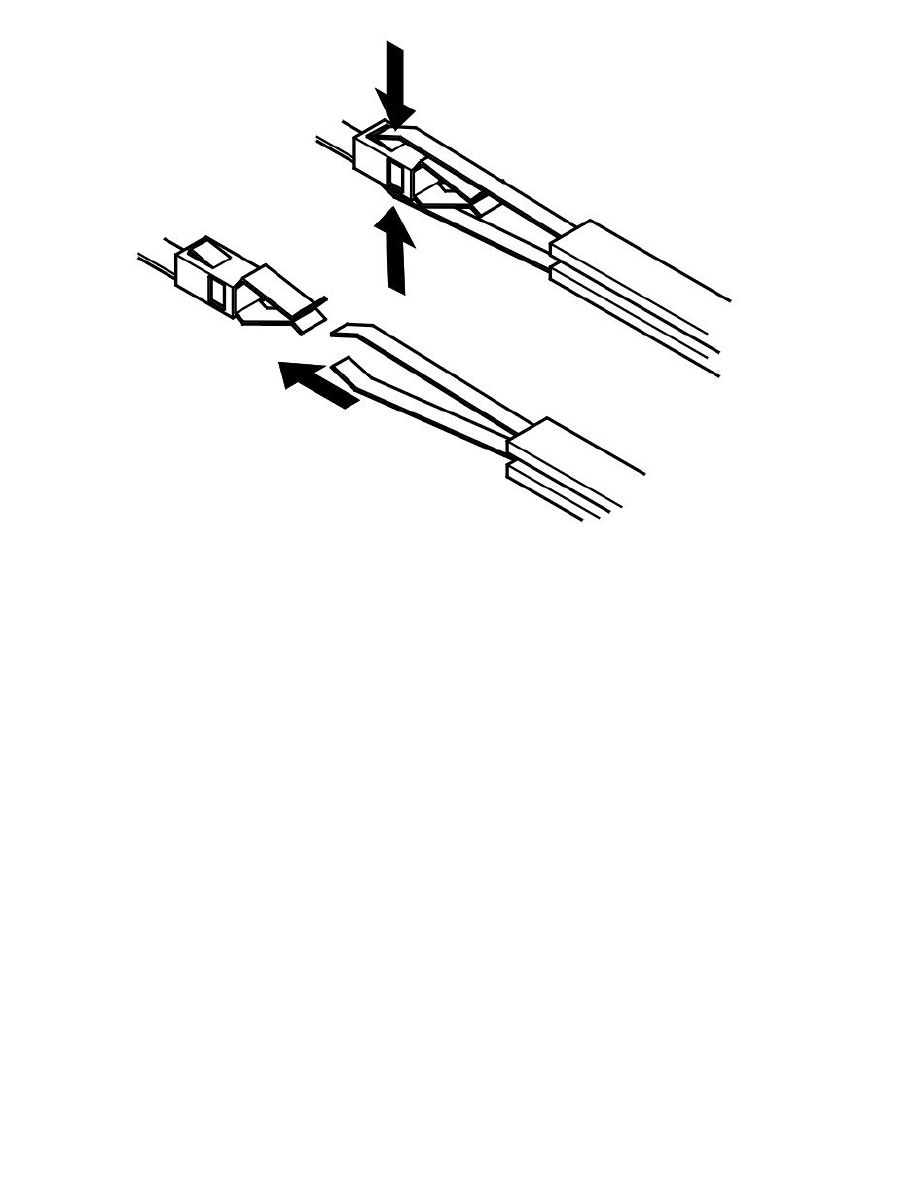

Special tools:951 2630 Terminal removal tool See: Tools and Equipment/951 2630 Terminal Removal Tool ,951 2631 Terminal removal tool See: Tools
and Equipment/951 2631 Terminal Removal Tool.
Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However,
the essential information in the illustrations is always correct.
Connector, dismantling
Secondary lock
