S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-

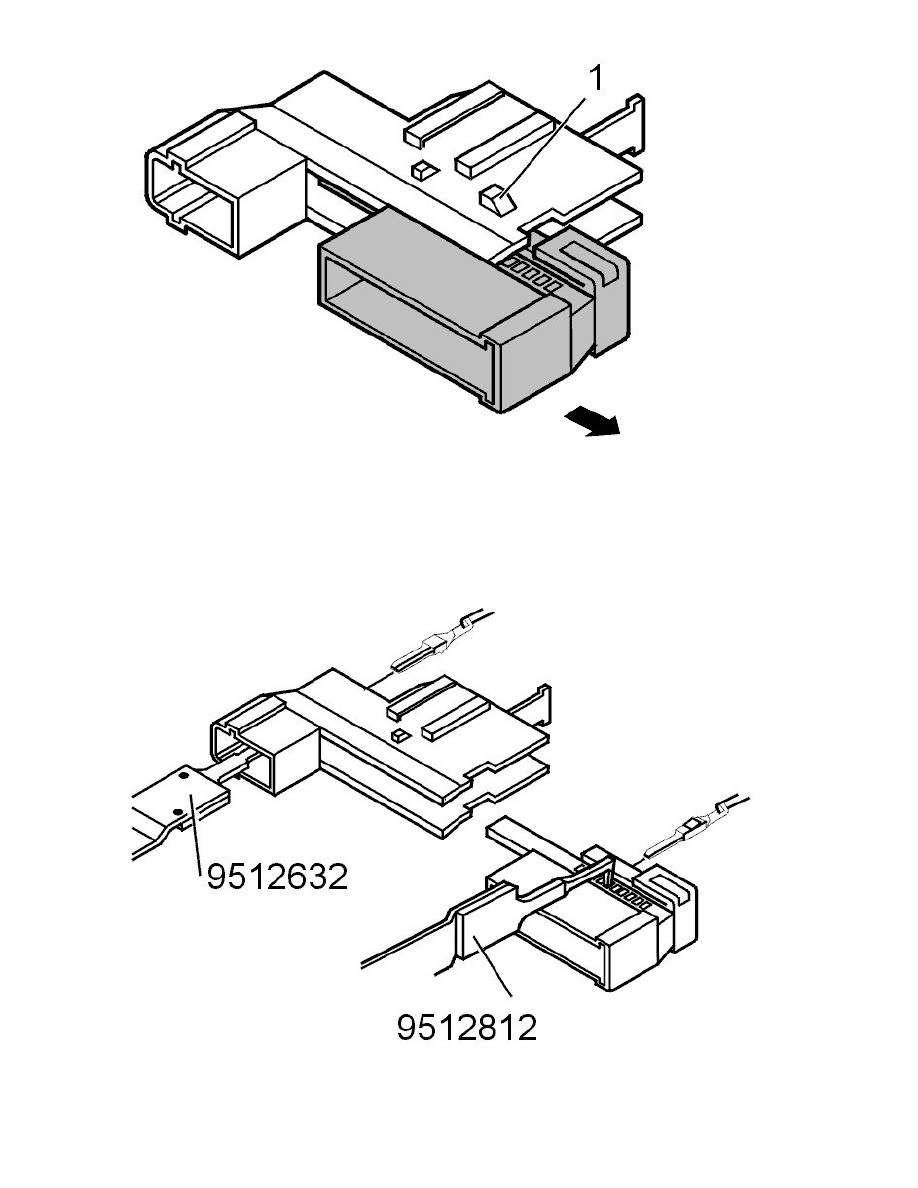

Release the inner housing section on the socket housing by lifting the catches and pulling the housing section outwards.
-
Remove the cable terminal, see Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal Removal Tools.
Hint: Use terminal removal tool951 2632 Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool or951 2812
Terminal removal tool See: Tools and Equipment/951 2812 Terminal Removal Tool.
