S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-
Remove the cable terminal, see Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal Removal Tools.
Hint: Use terminal removal tool951 2810 Terminal removal tool See: Tools and Equipment/951 2810 Terminal Removal Tool or951 2639
Terminal removal tool See: Tools and Equipment/951 2639 Terminal Removal Tool.
Crimp new cable terminal
-
Strip the cable see Stripping the cable See: Stripping a Cable/Stripping the Cable.
-
Replace cable terminal. Selecting cable terminal, see New cable terminal See: Replacing Cable Terminals/New Cable Terminal.
Hint: The following cable terminals are available for the relevant pin housing: 916 8527, 916 8529, 916 8535, 916 8537.
The following cable terminals are available for the relevant socket housing: 916 8526, 916 8528, 916 8534, 916 8536.
-
Carry out a single wire seal on the cable terminal, see Seal sws and plug See: Replacing Cable Terminals/Seal SWS and Plug.
-

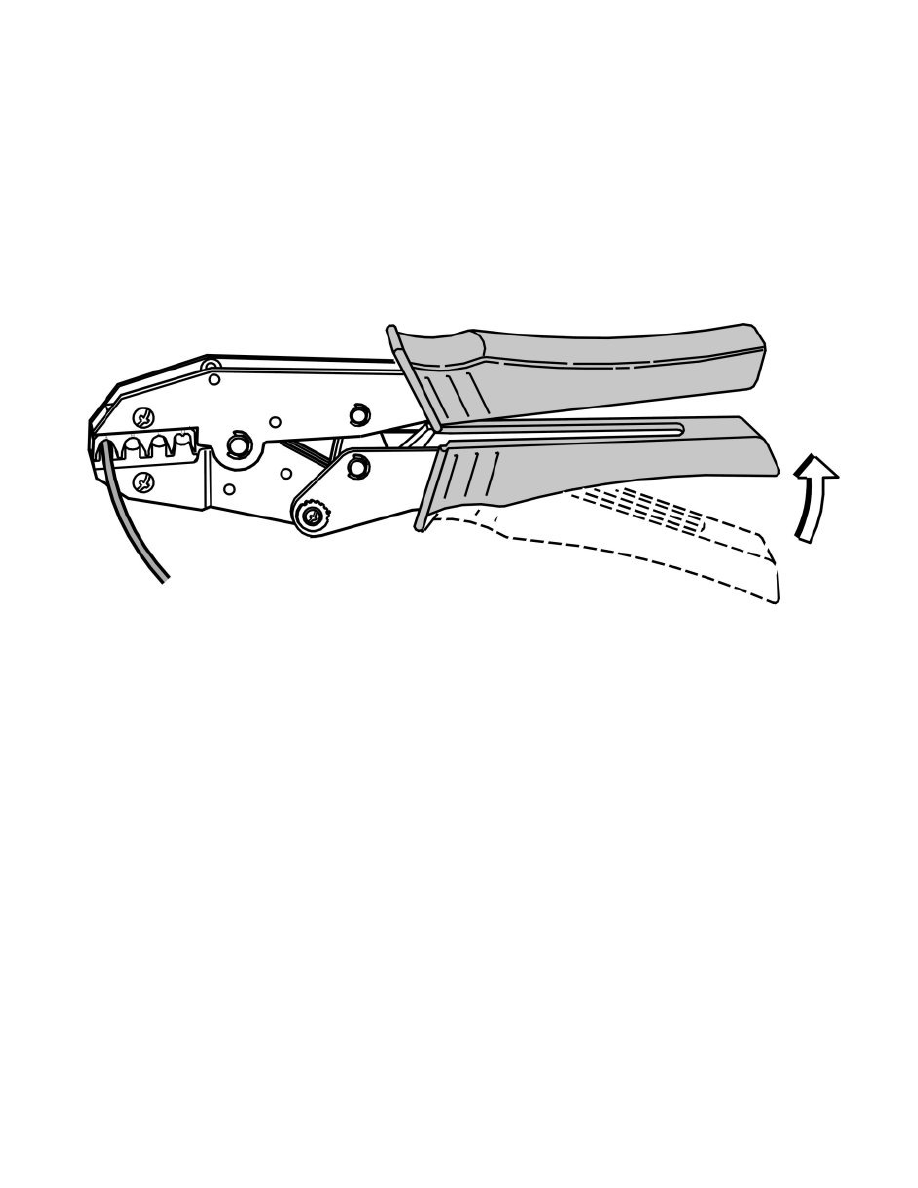

Crimp the cable terminal, see Crimping a cable terminal See: Terminal Crimping/Crimping a Cable Terminal.
Insert the new cable terminal in the housing
-
Insert the new cable terminal in the receptacle housing from the cable side (in the correct position). A click is heard when it hooks into place.
-
Carefully pull on the cables to check that the terminal is firmly attached.
-
Check the single wire seal.
Reassemble the connector
