Installation

Install in reverse order. See Removal

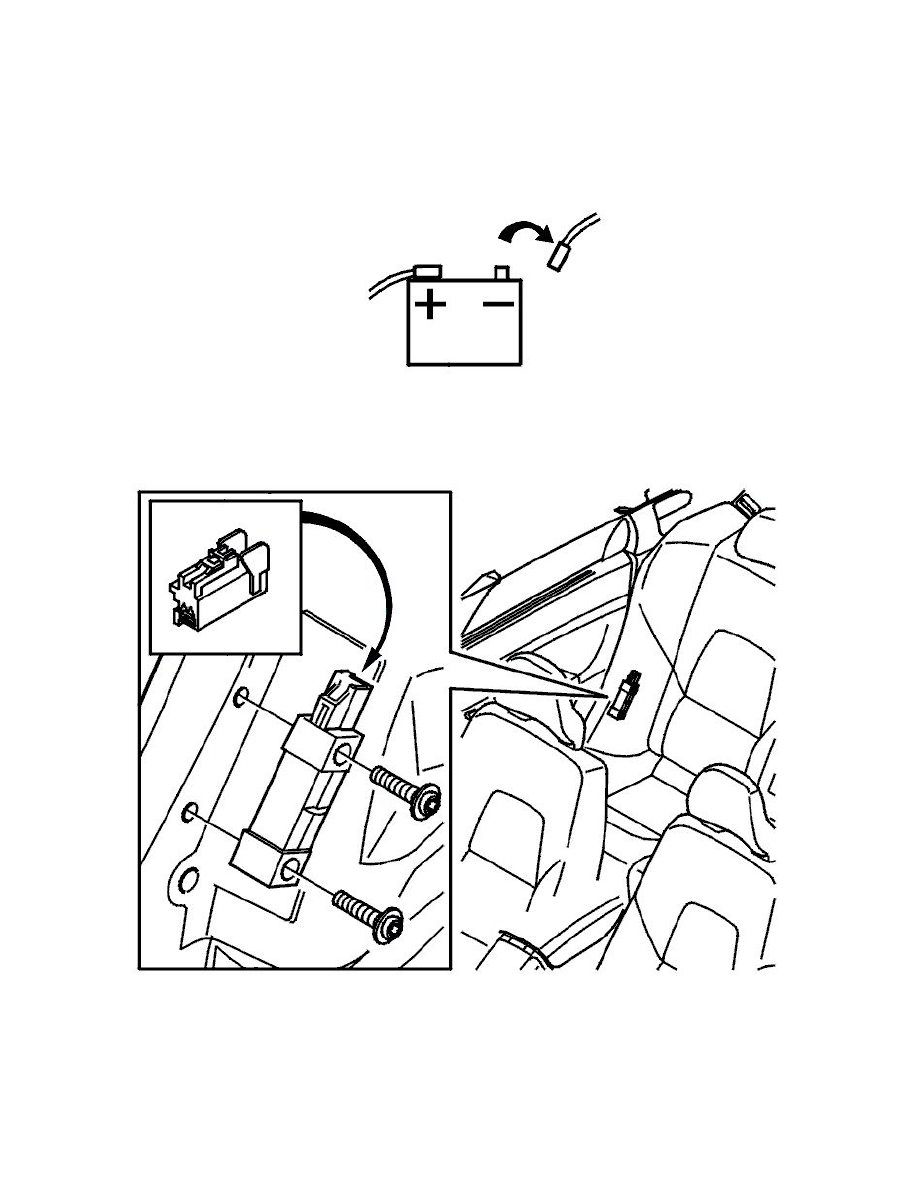

C/D-post sensor

Preparations

Disconnect the battery lead.
See Battery, disconnecting See: Starting and Charging/Battery/Service and Repair/Procedures/Battery, Disconnecting

Removal

Remove:

-

The side cushion. See Side cushion See: Body and Frame/Seats/Seat Cushion/Service and Repair/Rear Seat/Side Cushion

-

The connector (press the catches and pull downwards carefully)

Note! Do not pull the wiring.

-

2 screws (6 Nm).

Replace the sensor.
