S80 2.9 L6-2.9L VIN 94 B6294S (2000)
The following cable terminals are available for the relevant socket housing: 916 8502, 916 8504, 916 8508, 916 8512.
Hint: Use terminal removal tool951 2810 Terminal removal tool See: Tools and Equipment/951 2810 Terminal Removal Tool or951 2632
Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool.
Crimp new cable terminal
-
Strip the cable see Stripping the cable See: Stripping a Cable/Stripping the Cable.
-

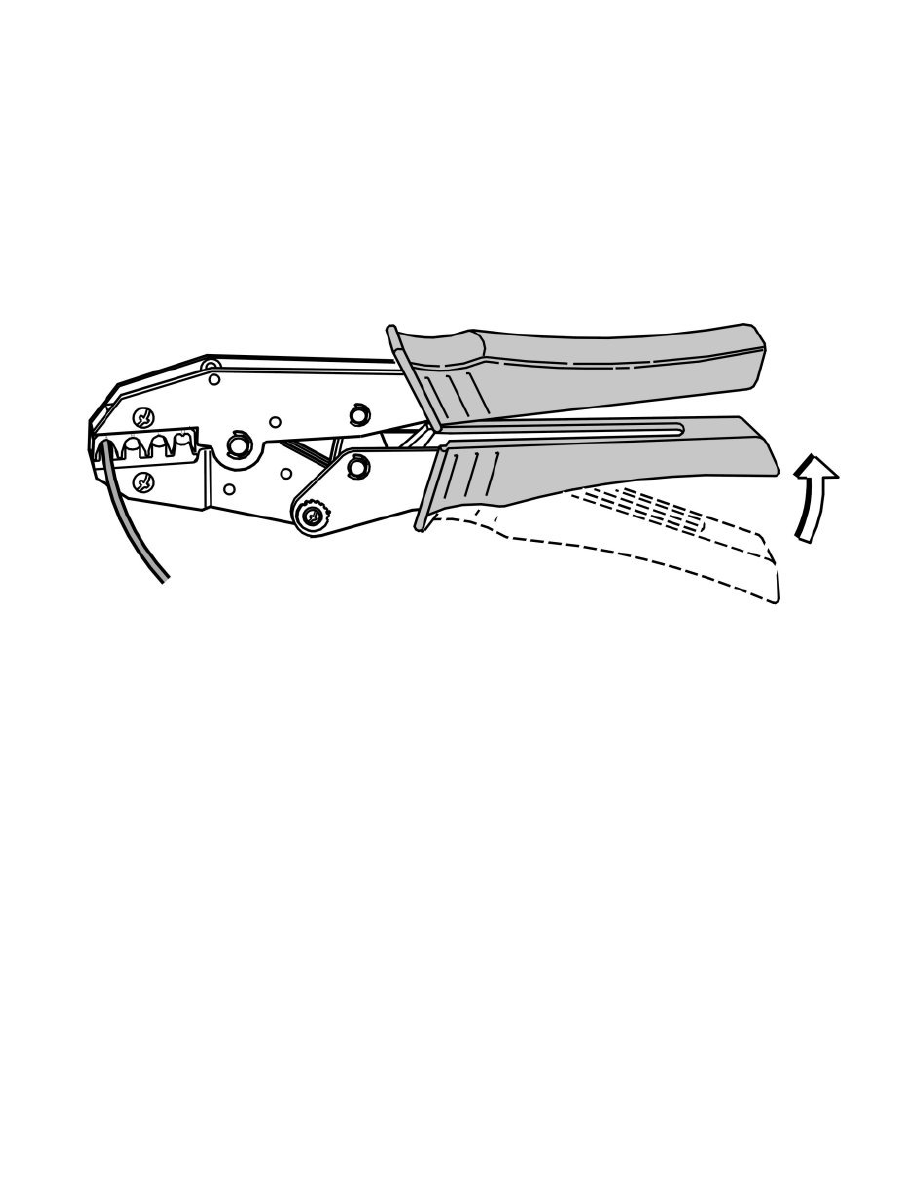

Crimp cable terminal, see Crimping a cable terminal See: Terminal Crimping/Crimping a Cable Terminal.
Insert the new cable terminal in the housing
-
Insert the new cable terminal in the receptacle housing from the cable side (in the correct position). A click is heard when it hooks into place.
-
Carefully pull on the cables to check that the terminal is firmly attached.
Reassemble the connector
