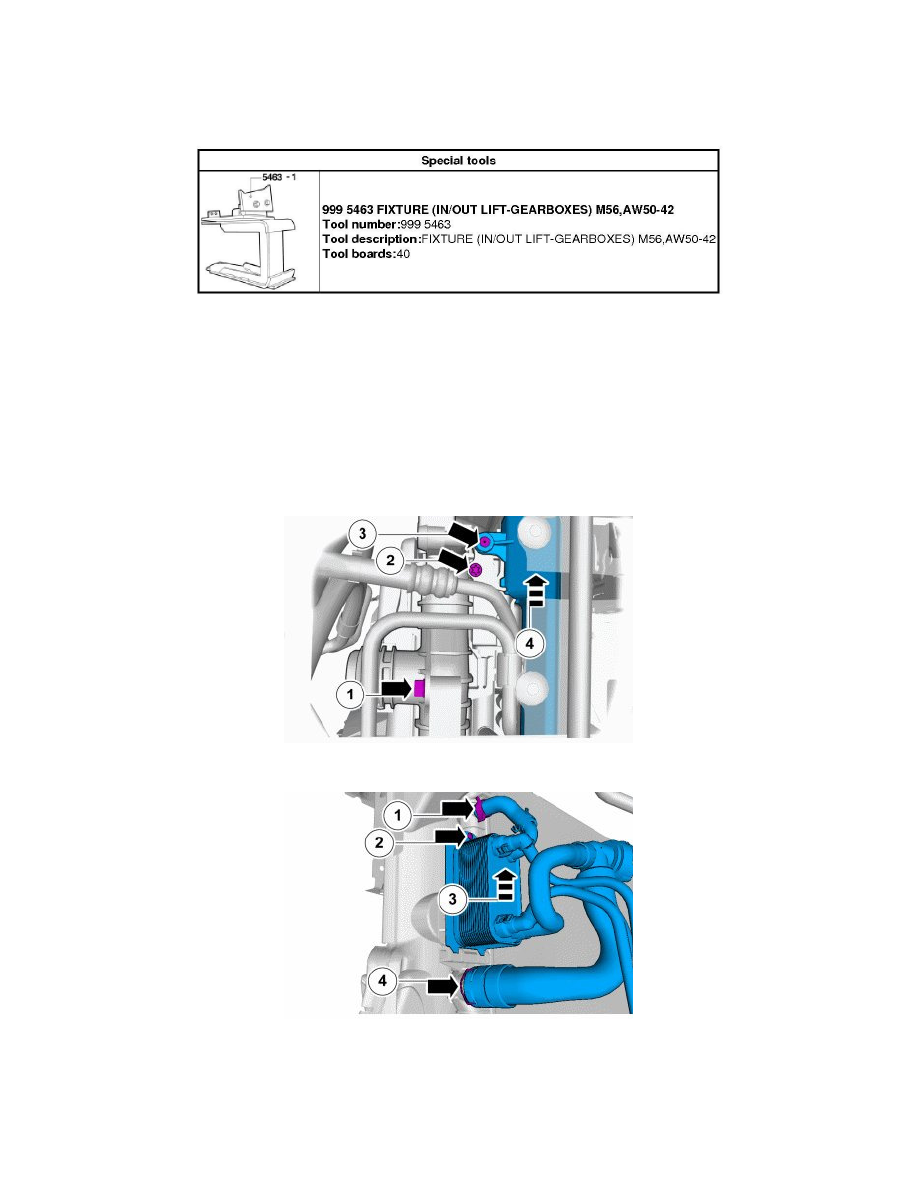

background image

Radiator: Removal and Replacement

Radiator

Operation number: 26104-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:

-

Cover bumper front.  See: Body and Frame/Bumper/Front Bumper/Front Bumper Cover / Fascia/Service and Repair

-

engine cooling fan (FC) Refer to: Engine cooling fan (FC), B8444S, TF-80SC AWD See: Radiator Cooling Fan/Service and Repair

Perform cooling system draining, charging and bleeding Refer to: See: Service and Repair

Remove right headlight Refer to: Headlamps See: Lighting and Horns/Headlamp/Service and Repair/Headlamps

Torque: Radiator to condenser, 5 Nm

Warning! Be prepared to collect escaping fluid.
