Connecting The Breakout Box, Audio Module (AUD)

Connecting the breakout box

Special tools:

951 1463 Adapter 22-16-14 pin See: Tools and Equipment/951 1463 Adapter 22-16-14 pin

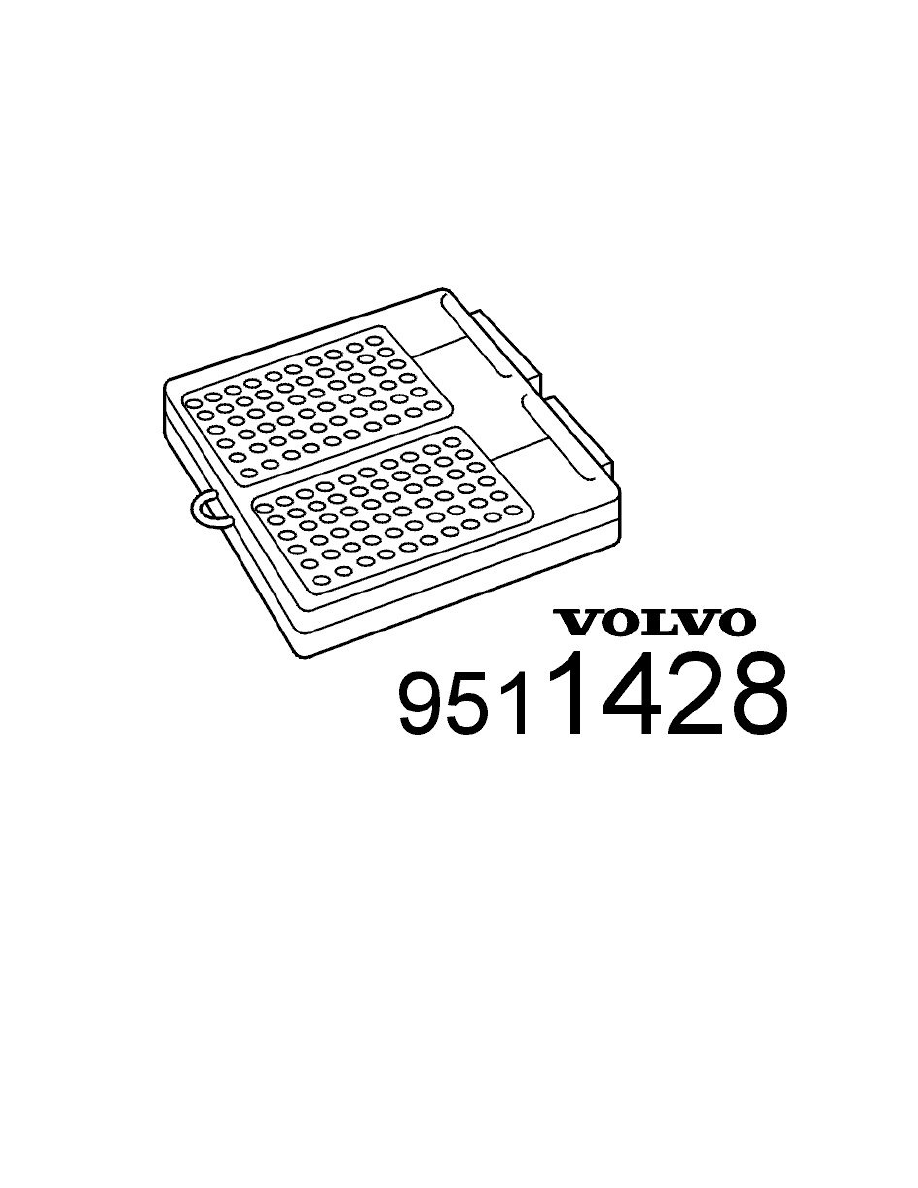

951 1428 Breakout box  See: Tools and Equipment/951 1428 Breakout box
951 1507 Adapter 12-12-8-4-2 Pin  See: Tools and Equipment/951 1507 Adapter 12-12-8-4-2 Pin
951 2888 16-pin AUD adapter See: Tools and Equipment/951 2888 16-Pin AUD Adapter

Connecting the breakout box

-

Ignition off

-

Expose the audio module (AUD)

-

Remove the fuse for the audio module (AUD).

Connect adapter 951 1463 Adapter 22-16-14 pin See: Tools and Equipment/951 1463 Adapter 22-16-14 pin  to the control module connector and
connect breakout box 951 1428 Breakout box  See: Tools and Equipment/951 1428 Breakout box  to the adapter. Audio module (AUD) terminals
#C1-#C22 correspond to terminals #1-#22 on the breakout box. Connect adapter 951 1507 Adapter 12-12-8-4-2 Pin  See: Tools and Equipment/951
1507 Adapter 12-12-8-4-2 Pin  to the control module connector and connect breakout box 951 1428 Breakout box  See: Tools and Equipment/951 1428
Breakout box  to the adapter. Audio module (AUD) terminals #A1and #A2 correspond to terminals #45 and #46 on the breakout box. Connect adapter
951 2888 16-pin AUD adapter See: Tools and Equipment/951 2888 16-Pin AUD Adapter  to the control module connector and connect breakout box
951 1428 Breakout box  See: Tools and Equipment/951 1428 Breakout box  to the adapter. Audio module (AUD) terminals #B1-#B16 correspond to
terminals #1-#16 on the breakout box.
The breakout box is designed to facilitate reading off the control module input and output signals when the control module is connected and cable and
component resistance when the control module is disconnected. The use of a breakout box reduces the risk of accidental short-circuited cables and
damage to the connector pins

Disconnecting breakout box

In reverse order.

Note! Before the control module can be checked and readings taken, the removed fuses must first be installed.

Other information
