V50 T5 L5-2.5L Turbo VIN 68 B5254T3 (2006)
Alternator Brush: Service and Repair
Carbon brush set
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.
Removal
Removing the carbon brush set
Remove:
-
the generator in accordance with: Generator See: Service and Repair.
-

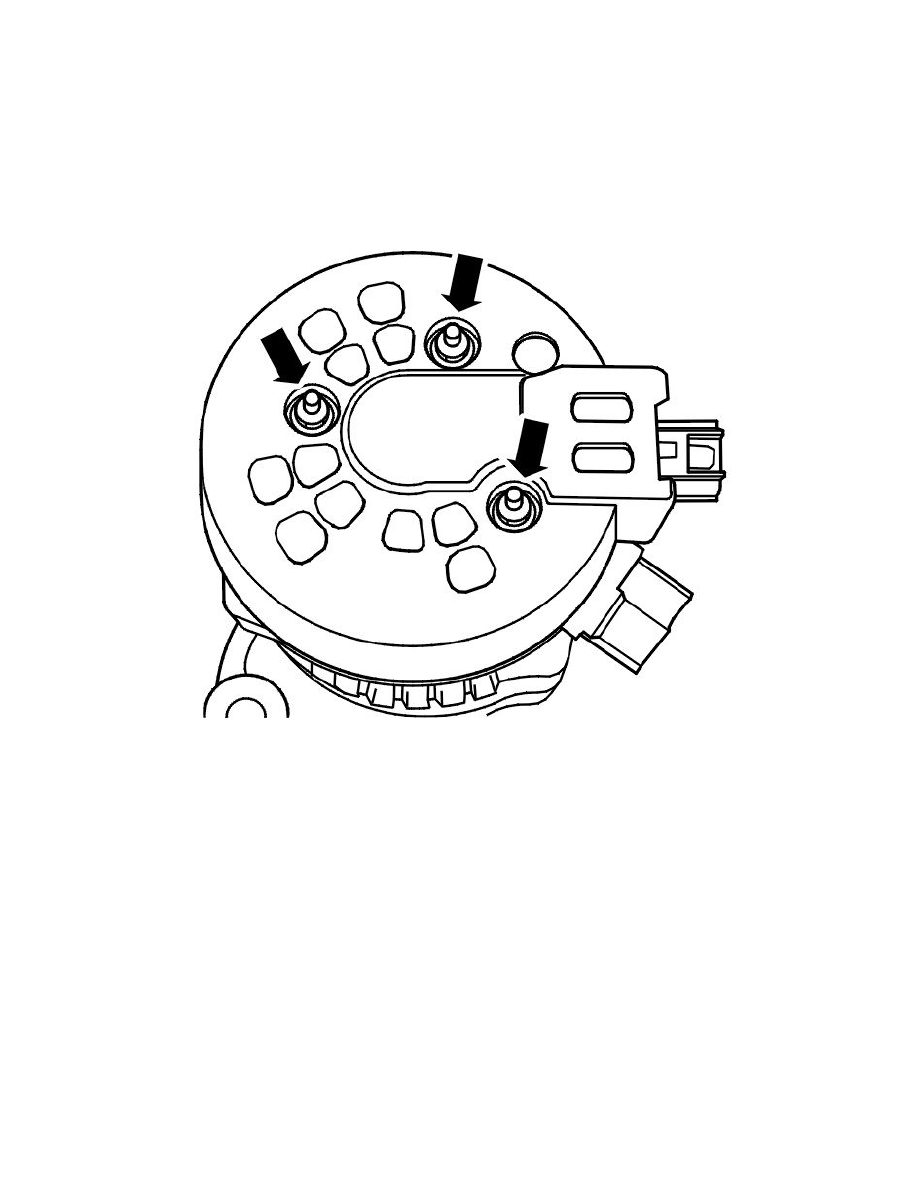

the 3 M6 nuts on the cover
-
the cover
-
the 2 M4 screws for the carbon brush set
-
the carbon brush set.
