Page 54

background image

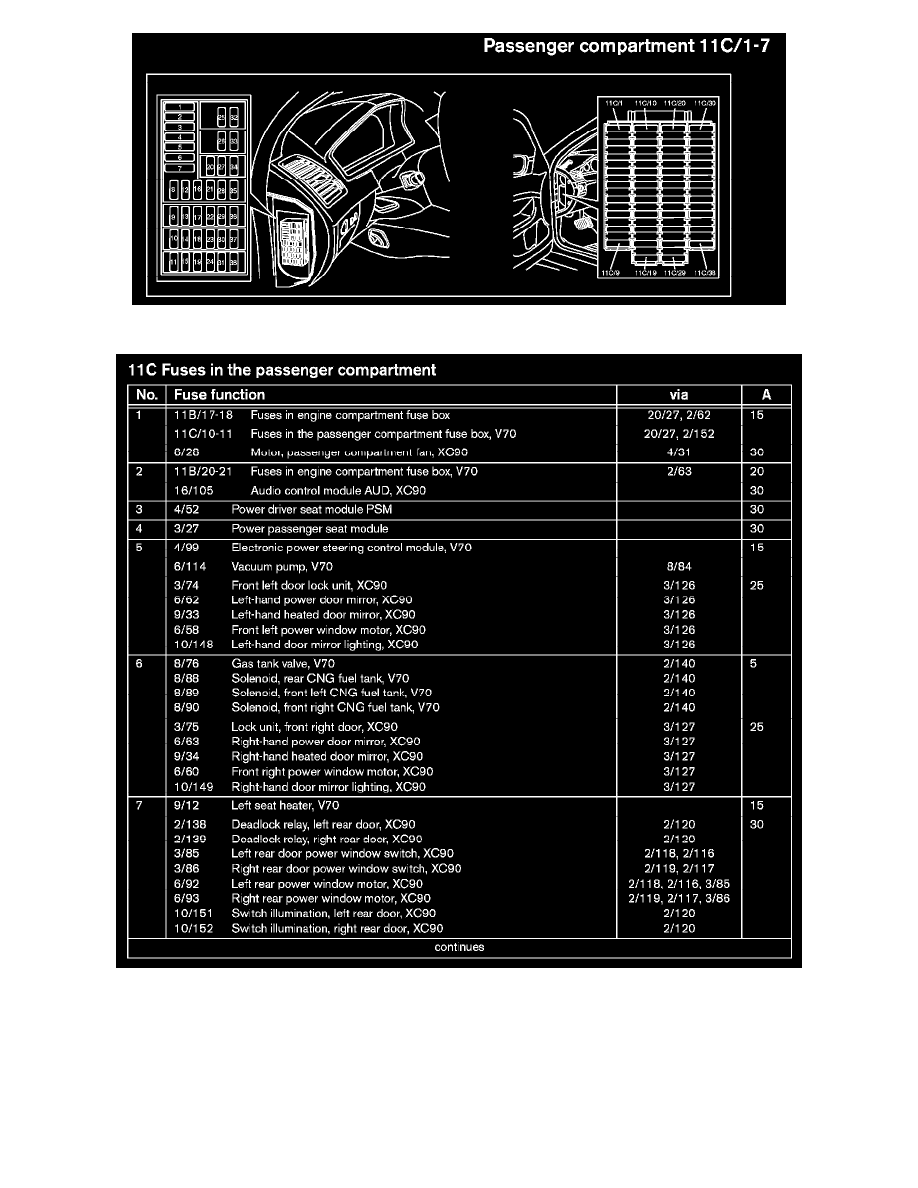

Fuses In Passenger Compartment

Fuses 11C/1-7

Starting and Charging
Power and Ground Distribution
Auxiliary Power Outlet / Diagrams / Diagram Information and Instructions
