Vehicle Lifting: Locations
Jacking points body
Note! Some variation in the illustrations may occur, but the essential information is always correct.

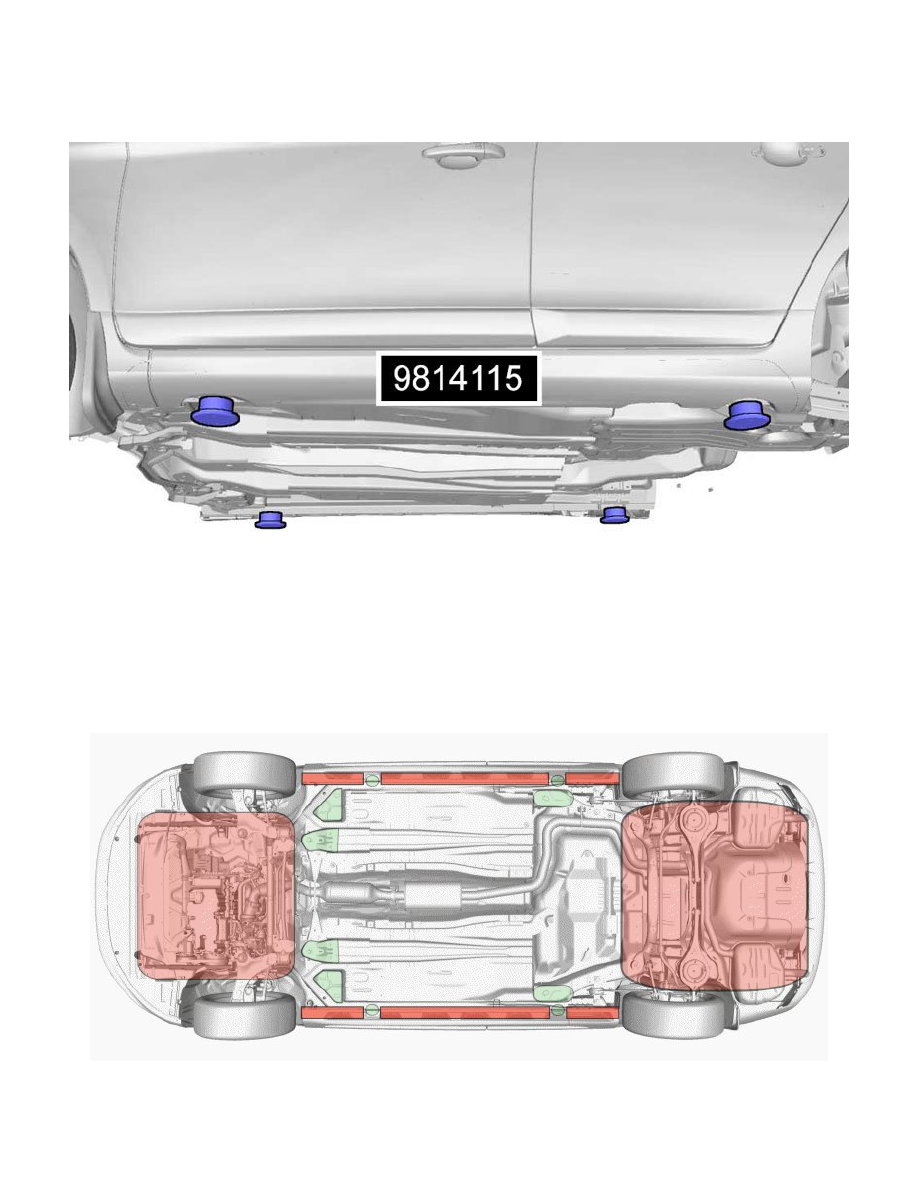

Location Of Components, Jacking Points Body
981 4115 Rubber mat See: Tools and Equipment/981 4115 Rubber MAT
Location Of Components, Jacking Points Body
When lifting the vehicle, use the green-marked lifting points in the illustration. The lifting plate shall be provided with rubber so that the vehicle is not
damaged.
