XC70 L5-2.5L Turbo VIN 59 B5254T2 (2003)

Engine, Cooling and Exhaust > Engine > Actuators and Solenoids - Engine > Variable Valve Timing Solenoid > Component Information > Service and Repair > Procedures > Page 2636

Page 3
background image

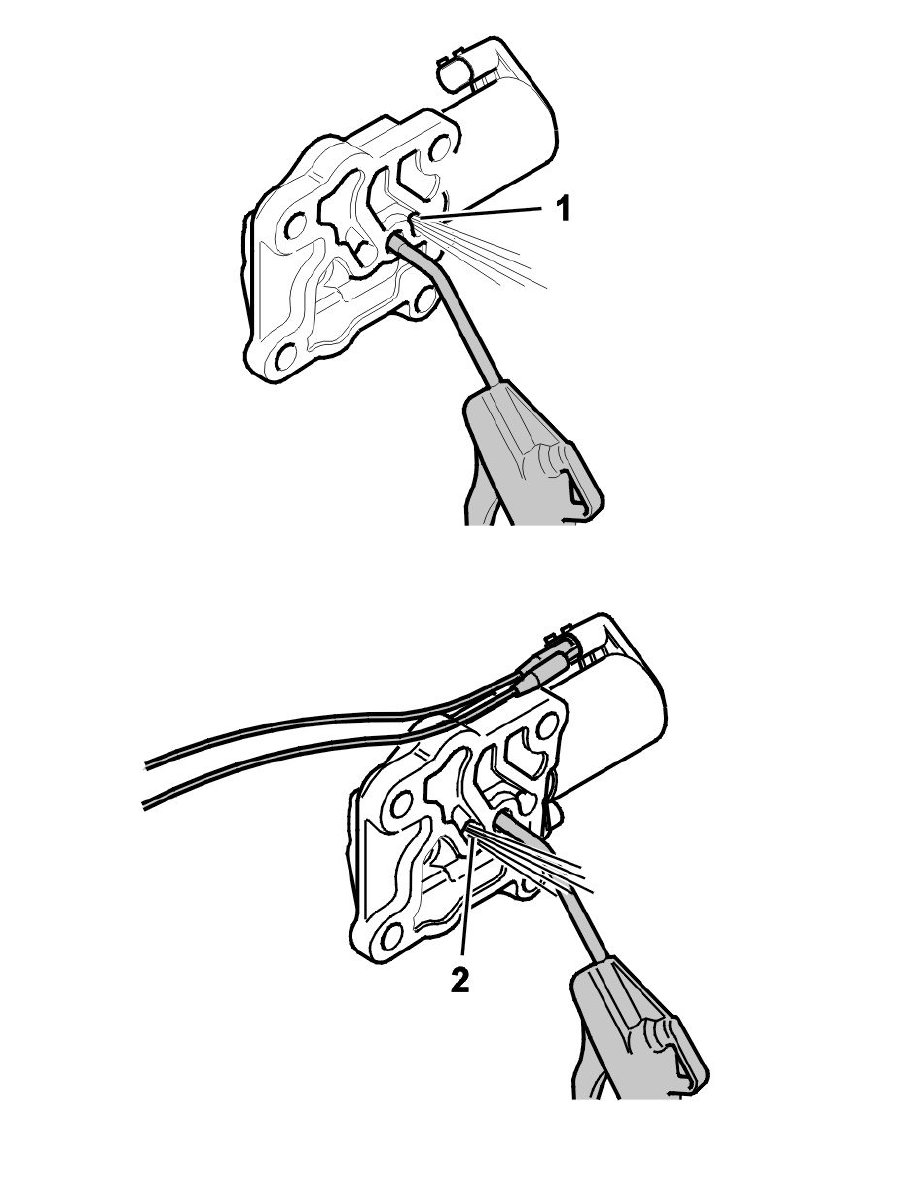

Remove VVT solenoid from camshaft cover.
Blow through center hole with compressed air.
Air should emerge from inner hole (1) nearest coil.

Connect power to solenoid. Solenoid should click.
