Disconnect the cable terminal that is to be replaced. See: Connectors, repair See: Diagrams/Diagnostic Aids/Connectors, Repair.

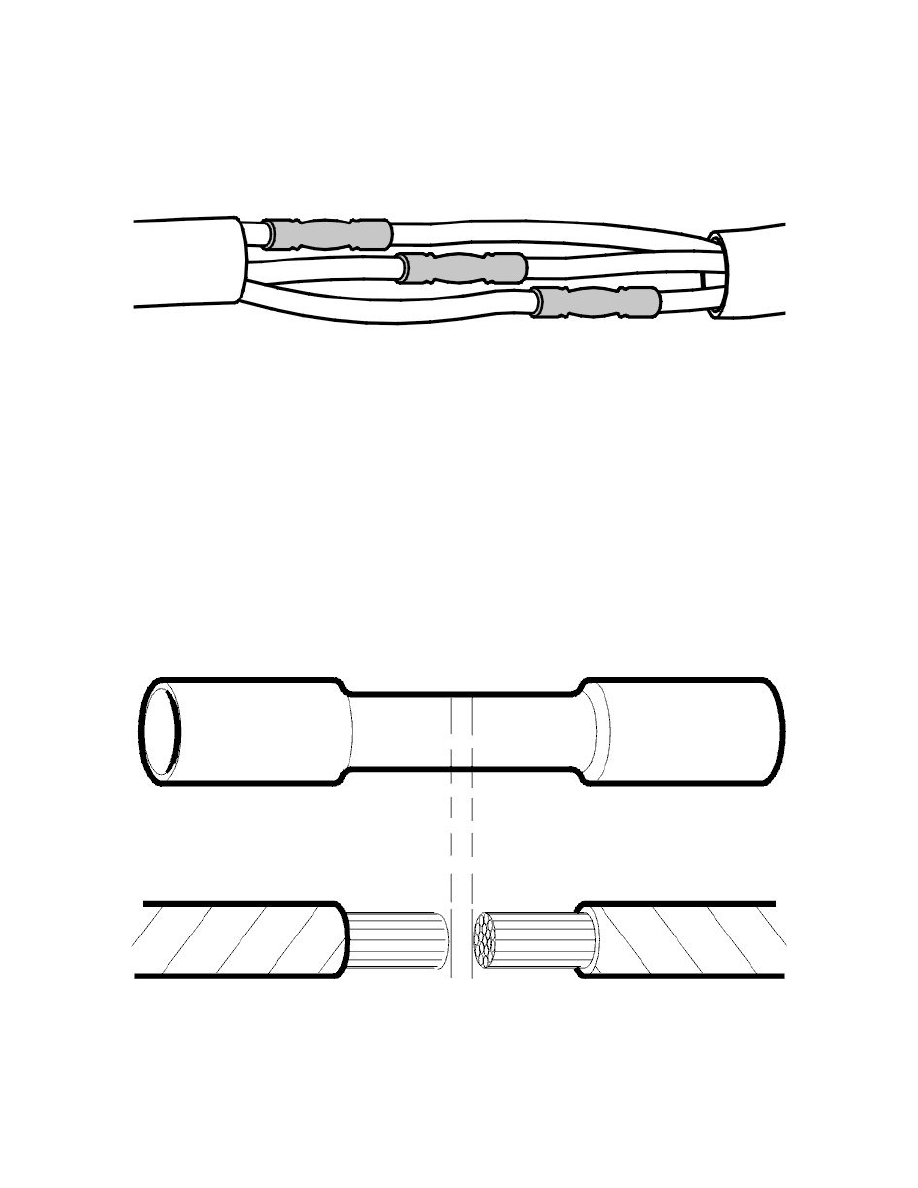

Hint: If several cable terminals are to be replaced at the same time, spread out the splice points, as illustrated.
Cut the cable at a suitable point. Note the length of the new cable terminal cable.
Select a cable terminal with the same area as the old one.
Reinstall the cable harness. If necessary use a crimping sleeve and tie straps.
