XC90 L5-2.5L Turbo VIN 59 B5254T2 (2004)
Hose/Line HVAC: Service and Repair
Pipe/Hose Compressor, Replacing
Pipe/hose compressor, replacing
As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential
information in the illustrations is always correct.
Warning! Follow the safety instructions for work on air conditioning systems. See Refrigerant, safety regulations See: Heating and Air
Conditioning/Service Precautions/Technician Safety Information.
Read the instructions covering slow and fast leaks. See See: Heating and Air Conditioning/Service Precautions/Vehicle Damage Warnings/Oil Air
Conditioning (A/C) System, Filling
Always plug the pipes and couplings when working on the climate control system.
Drain the refrigerant from the system. See Refrigerant, draining See: Heating and Air Conditioning/Service and Repair/Refrigerant, Draining.
Removing the pipe/hose from the compressor - condenser
Remove the charge air hose on the right-hand side.
Disconnect the pipe/hose from the compressor.

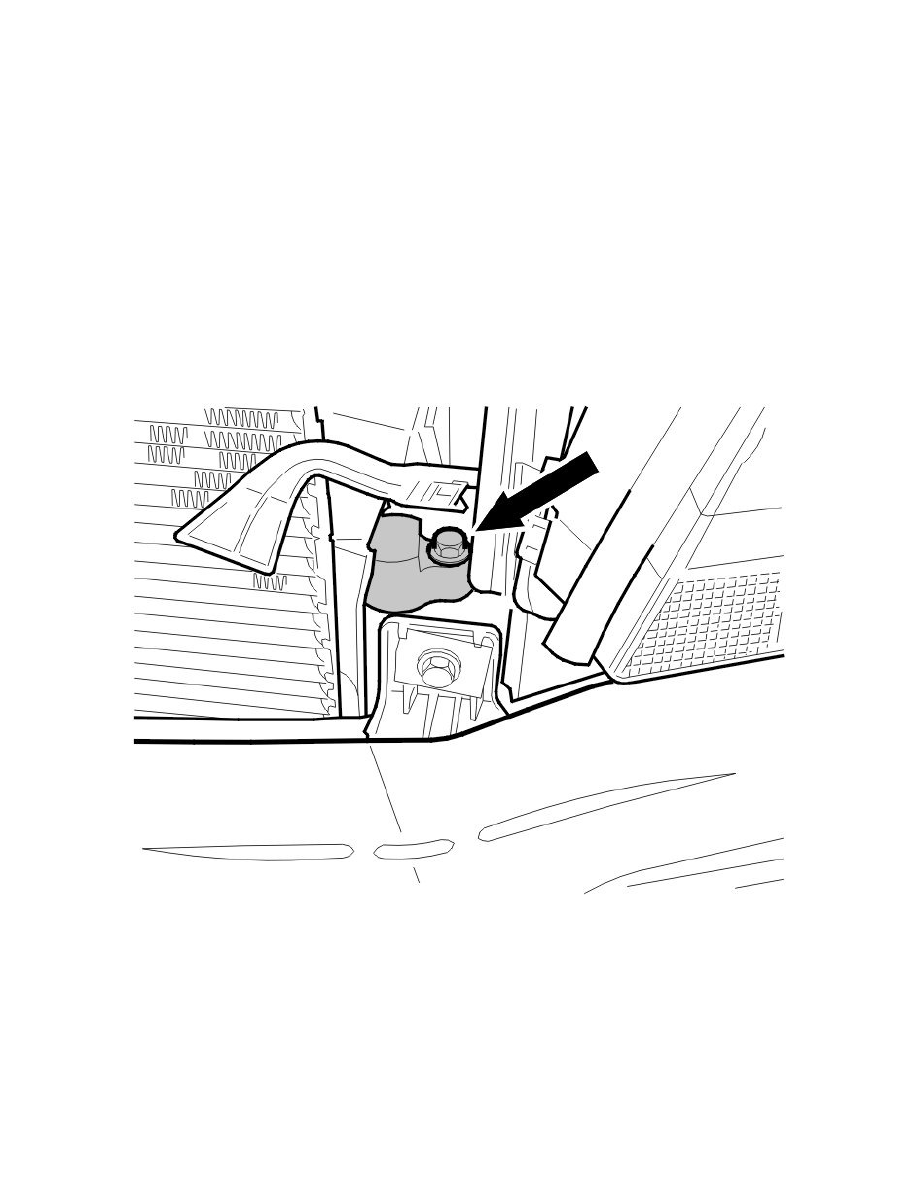

1 screw from the hose/pipe coupling between the compressor and the condenser (see the illustration)
the left-hand headlamp. See Headlight/bulb, replacing See: Lighting and Horns/Headlamp/Headlamp Bulb/Service and Repair/Headlight/Bulb,
Replacing Headlight/bulb, replacing See: Lighting and Horns/Headlamp/Headlamp Bulb/Service and Repair/Headlight/Bulb, Replacing
the pipe from the retaining clip on the condenser. Carefully put the pipe to one side.
